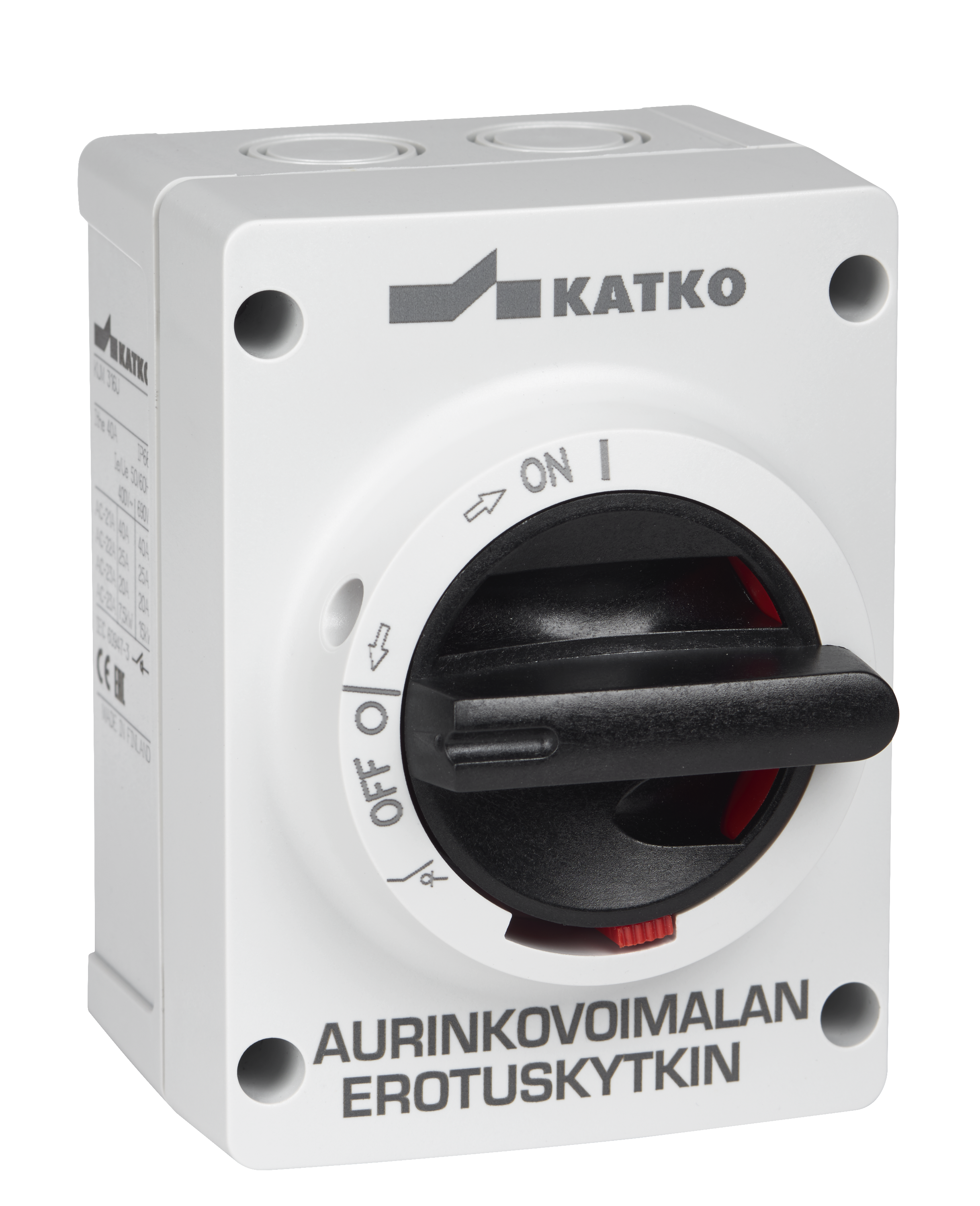

SAFETY SWITCH KUM 310AE 3x16A 400V 5,5kW
Product code
3600760
No product description available.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V5.5 kW
Switching power at 400 V0 kW
Product codes
SAPCGB221
STK3600760
PLC3600760
GTIN/EAN6419410400029
Manufacturer part number40002
Vendor material number3600760
Basic information

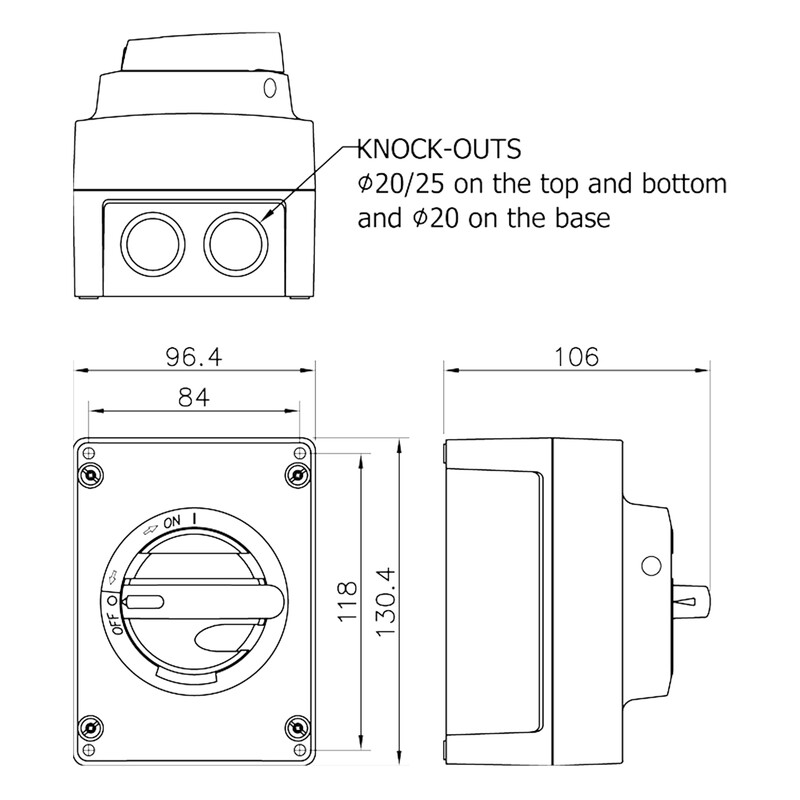

Package measurements (L x W x H)130 x 95 x 105 mm
Package volume1.297 l
Package weight0.45 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
