SAFETY SWITCH KUM 3125 3x125A 400V 1V 55kW
Product code
3600503
Technical specifications

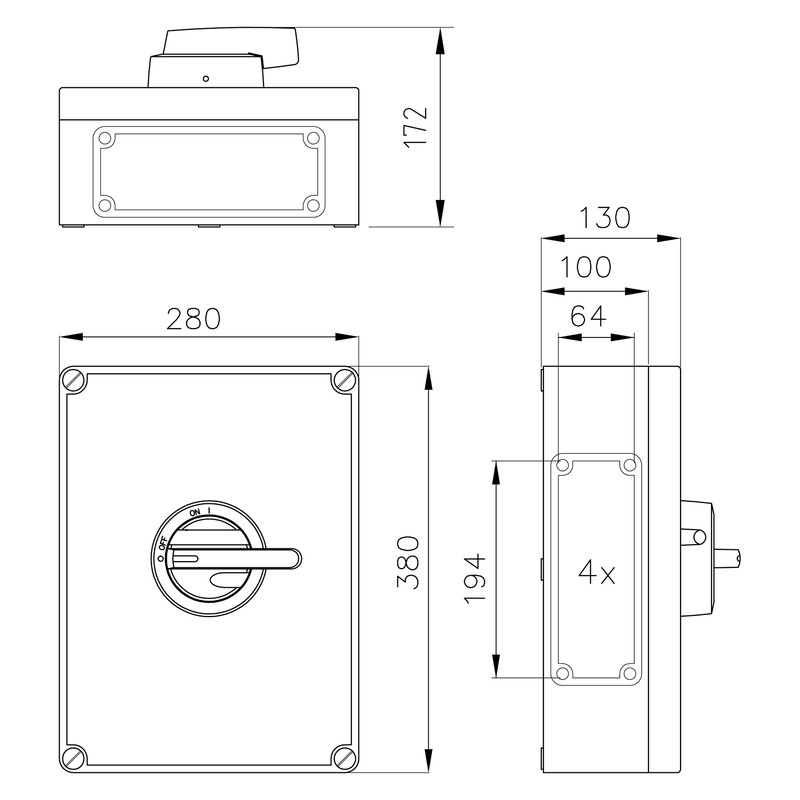

- L 280 x W 380 x D 172 (MF01)
- Polycarbonate enclosure
- IP65
- Safety switch
- 3-pole
- AC-23 / 400 V / 125 A / 55 kW
- AC-23 / 690 V / 80 A / 75 kW
- Includes auxiliary contact 1NO+1NC
- Lockable knob
- Self-extinguishing material
- Good resistance to UV radiation
- Good protection against various chemicals.
Cable details and directions must be specified when ordering. Flange openings up, down, and sideways. Max. 2 x M63 + M16 gland seals / flange. It is recommended to use connector KKL 1x120T (1942102) for cables 16 – 120 mm.
Available separately- Auxiliary contact 2.V160KU (3600825) 2NO + 2NC
- Terminal blocks available in KATKO's product catalog.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu160 A
Rated permanent current at AC-23, 400 V125 A
Rated permanent current at AC-21, 400 V160 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V55 kW
Switching power at 400 V0 kW
Product codes
SAPAAQ376
STK3600503
PLC3600503
GTIN/EAN6419410360309
Manufacturer part number36030
Vendor material number3600503
Basic information
Package measurements (L x W x H)560 x 280 x 200 mm
Package volume31.36 l
Package weight5.6 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.456
GWP, uniteach
Source for GWP dataco2data.fi
