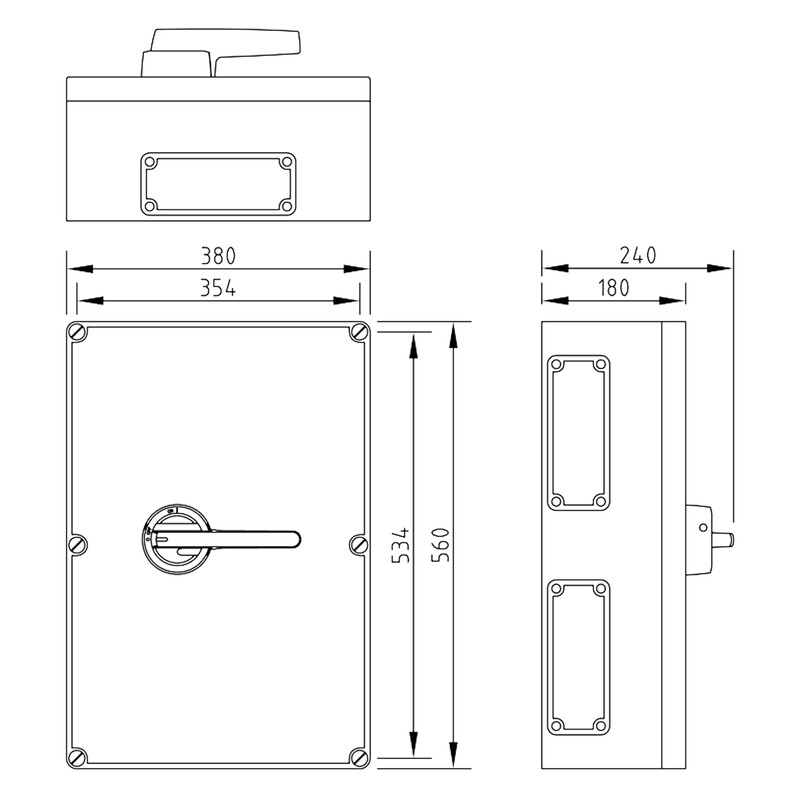

SAFETY SWITCH KUM 3200A 3x200A 400V 1V 110kW
Product code
3600616
Polycarbonate enclosure IP65
Safety switch (IP65)
3-pole
AC-23/400V /200A/110kW
AC-23/690V /200A/160kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cables in and out from below.
Cable specifications must be specified when ordering.
Flange blanks up/down and 2 pcs on sides.
Available separately:
Auxiliary contact: KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of discontinuation product) This product description is an automated translation of the original Finnish description.
Safety switch (IP65)
3-pole
AC-23/400V /200A/110kW
AC-23/690V /200A/160kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cables in and out from below.
Cable specifications must be specified when ordering.
Flange blanks up/down and 2 pcs on sides.
Available separately:
Auxiliary contact: KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of discontinuation product) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu200 A
Rated permanent current at AC-23, 400 V200 A
Rated permanent current at AC-21, 400 V200 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V110 kW
Switching power at 400 V0 kW
Product codes
SAPALR416
STK3600616
PLC3600616
GTIN/EAN6419410364208
Manufacturer part number36420
Vendor material number3600616
Basic information
Package measurements (L x W x H)560 x 380 x 240 mm
Package volume51.072 l
Package weight7.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
