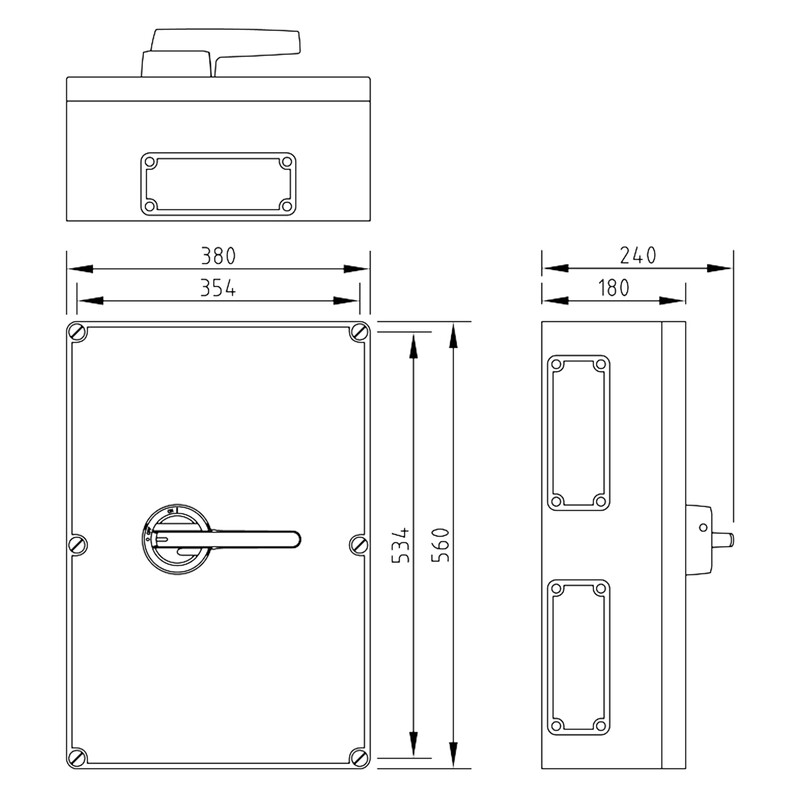

SAFETY SWITCH KUM 3250 3x250A 400V 1V 132kW
Product code
3600622
Polycarbonate enclosure IP65
Safety switch (IP65)
3-pole
AC-23/400V /250A/132kW
AC-23/690V /250A/250kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cable in from top and out from bottom.
Cable specifications must be specified when ordering.
Flange blanks up/down and 2 pcs on sides.
Available separately:
Auxiliary contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of discontinued products) This product description is an automated translation of the original Finnish description.
Safety switch (IP65)
3-pole
AC-23/400V /250A/132kW
AC-23/690V /250A/250kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cable in from top and out from bottom.
Cable specifications must be specified when ordering.
Flange blanks up/down and 2 pcs on sides.
Available separately:
Auxiliary contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of discontinued products) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu250 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V132 kW
Switching power at 400 V0 kW
Product codes
SAPALR417
STK3600622
PLC3600622
GTIN/EAN6419410364604
Manufacturer part number36460
Vendor material number3600622
Basic information
Package measurements (L x W x H)560 x 380 x 240 mm
Package volume51.072 l
Package weight7.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
