SAFETY SWITCH KUM 3250A 3x250A 400V 1V 132kW
Product code
3600626
Polycarbonate enclosure IP65
Safety switch (IP65)
3-pole
AC-23/400V /250A/132kW
AC-23/690V /250A/250kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cables in and out from top.
Cable specifications to be specified when ordering.
Flange blanks up/down and 2 pcs on sides.
Available separately:
Auxiliary contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see circuit breaker product list) This product description is an automated translation of the original Finnish description.
Safety switch (IP65)
3-pole
AC-23/400V /250A/132kW
AC-23/690V /250A/250kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cables in and out from top.
Cable specifications to be specified when ordering.
Flange blanks up/down and 2 pcs on sides.
Available separately:
Auxiliary contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see circuit breaker product list) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu250 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V132 kW
Switching power at 400 V0 kW
Product codes
SAPALR419
STK3600626
PLC3600626
GTIN/EAN6419410364802
Manufacturer part number36480
Vendor material number3600626
Basic information

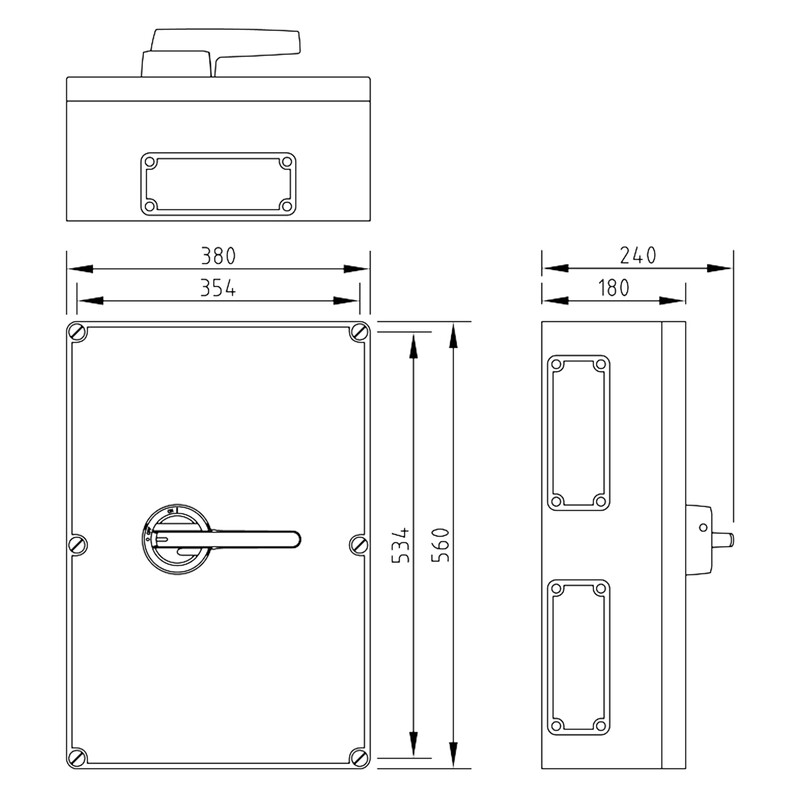

Package measurements (L x W x H)560 x 380 x 240 mm
Package volume51.072 l
Package weight7.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.014
GWP, uniteach
Source for GWP dataco2data.fi
