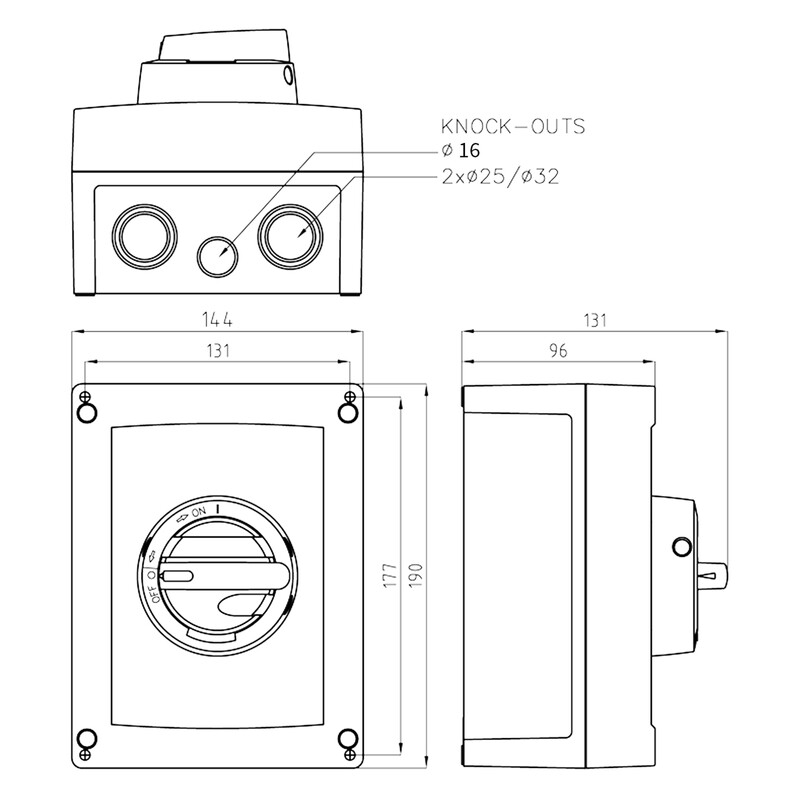

SAFETY SWITCH KUM 340 3x50A 400V 1V 22kW
Product code
3600725
Polycarbonate enclosure / with auxiliary contact IP66
Safety switch
3-poles
AC-23/400V /50A/22kW
AC 23/690V /32A/30kW
Switching device: KATKOn KU 363N load switch
(S: no 3600723)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 2xM32(15-21mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Safety switch
3-poles
AC-23/400V /50A/22kW
AC 23/690V /32A/30kW
Switching device: KATKOn KU 363N load switch
(S: no 3600723)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 2xM32(15-21mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu90 A
Rated permanent current at AC-23, 400 V50 A
Rated permanent current at AC-21, 400 V90 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V22 kW
Switching power at 400 V0 kW
Product codes
SAPCIF548
STK3600725
PLC3600725
GTIN/EAN6419410303863
Manufacturer part number30386
Vendor material number3600725
Basic information
Package measurements (L x W x H)190 x 144 x 135 mm
Package volume3.694 l
Package weight0.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.886
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID8.56
