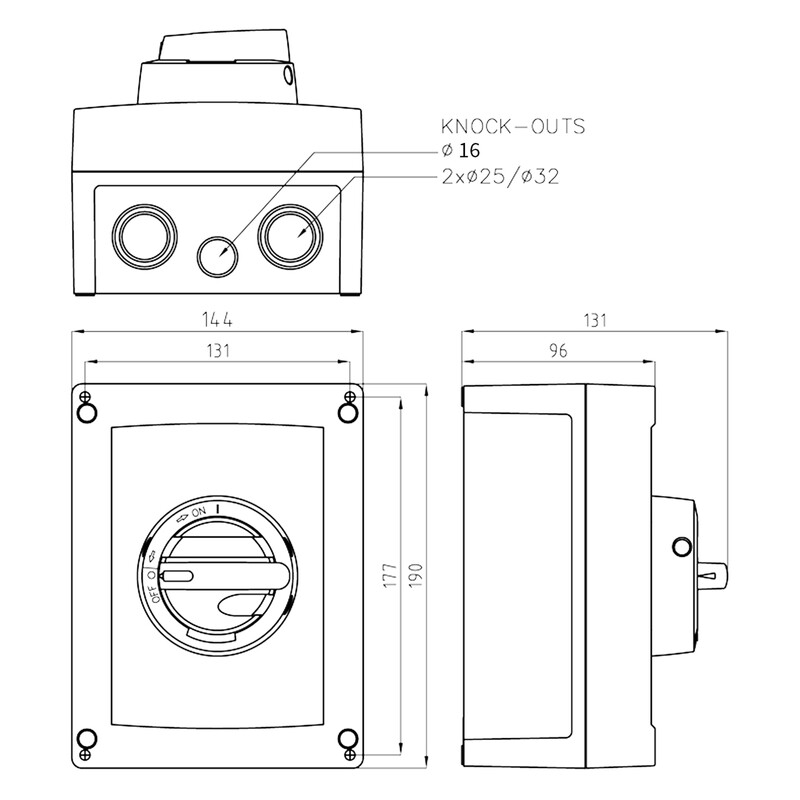

SAFETY SWITCH KUM 363 3x63A 400V 1V 30kW
Product code
3600737
Polycarbonate enclosure / with auxiliary contact IP66
Safety switch
3-poles
AC-23/400V /63A/30kW
AC 23/690V /40A/37kW
Switching device: KATKOn KU 380N load switch
(S: no 3635104)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 2xM32L(18-25mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Safety switch
3-poles
AC-23/400V /63A/30kW
AC 23/690V /40A/37kW
Switching device: KATKOn KU 380N load switch
(S: no 3635104)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 2xM32L(18-25mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPCIF556
STK3600737
PLC3600737
GTIN/EAN6419410303931
Manufacturer part number30393
Vendor material number3600737
Basic information
Package measurements (L x W x H)190 x 144 x 135 mm
Package volume3.694 l
Package weight0.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.049
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID10.5
