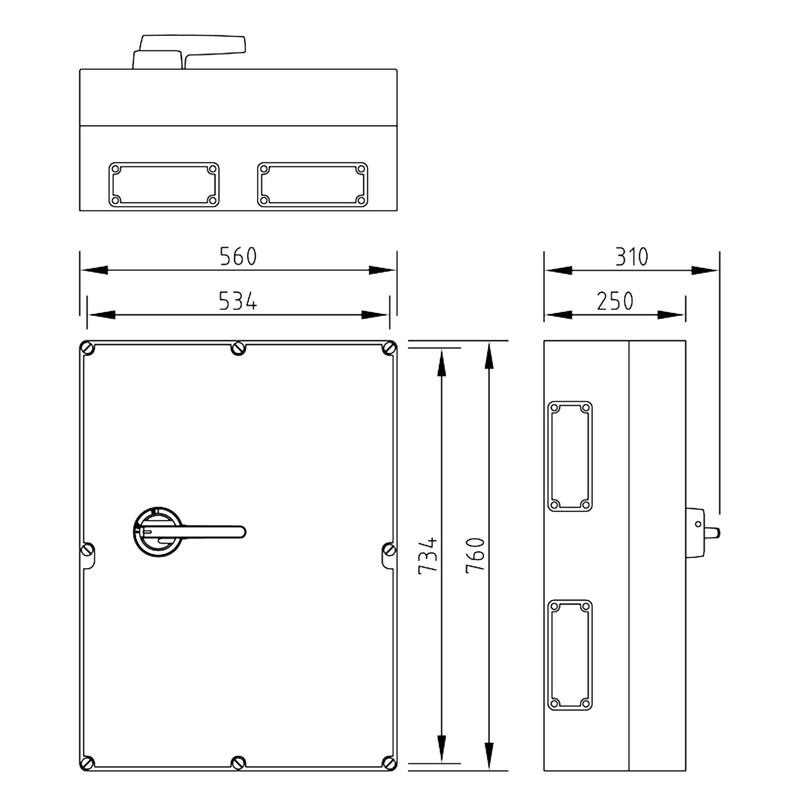

SAFETY SWITCH KUM 3630 3x630A 400V 1V 355kW
Product code
3600632
Polycarbonate enclosure IP65
Safety switch / Safetyswitch 3-pole / 3-Poles
AC-23/ 400V / 630A / 355kW
AC-23/ 690V / 500A / 500kW
Polycarbonate
Padlockable
Includes aux.contact
1.V160KU (1NO + 1NC) S-no 3600819
Cables in from above and out from below.
Cable information must be specified when ordering.
Available separately:
Aux. contact: 2.V160KU (2NO+2NC) (3600825)
Terminal blocks (see Circuit breaker product list) This product description is an automated translation of the original Finnish description.
Safety switch / Safetyswitch 3-pole / 3-Poles
AC-23/ 400V / 630A / 355kW
AC-23/ 690V / 500A / 500kW
Polycarbonate
Padlockable
Includes aux.contact
1.V160KU (1NO + 1NC) S-no 3600819
Cables in from above and out from below.
Cable information must be specified when ordering.
Available separately:
Aux. contact: 2.V160KU (2NO+2NC) (3600825)
Terminal blocks (see Circuit breaker product list) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu630 A
Rated permanent current at AC-23, 400 V630 A
Rated permanent current at AC-21, 400 V630 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw10 kA
Rated operation power at AC-23, 400 V355 kW
Switching power at 400 V0 kW
Product codes
SAPALR421
STK3600632
PLC3600632
GTIN/EAN6419410365403
Manufacturer part number36540
Vendor material number3600632
Basic information
Package measurements (L x W x H)760 x 560 x 310 mm
Package volume131.936 l
Package weight12 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.32
GWP, uniteach
Source for GWP dataco2data.fi
