SAFETY SWITCH KUM 363AE 3x63A 400V 30kW
Product code
3600757

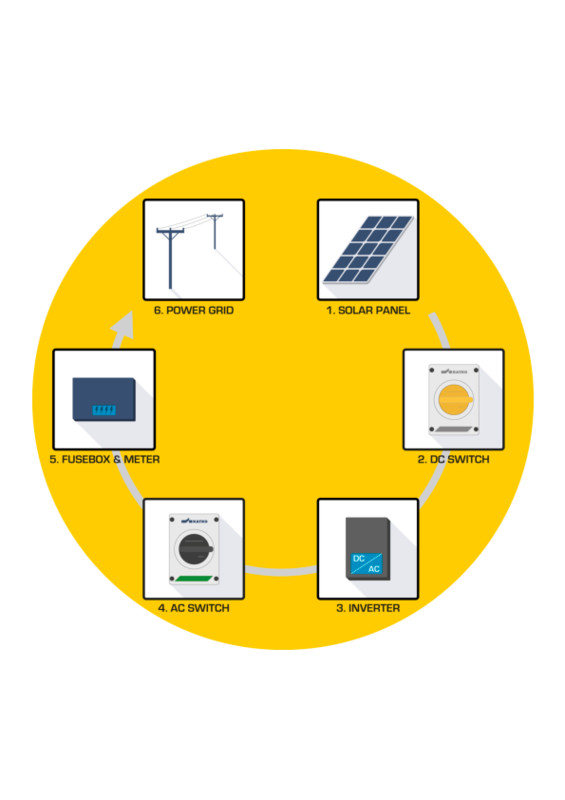

SOLAR POWER STATION ISOLATION SWITCH
POLYCARBONATE HOUSING IP66
Safety switch
3-pole / 3-Poles
AC-23/400V /63A/30kW
AC-23/690V /40A/37kW
Lockable handle
Includes cable glands
2xM32L (18-25mm)
Available separately:
Auxiliary contacts: KU1.V (1NO+1NC) 3600490 or
KU2.V (2NO+2NC) 3600491
(Note! Add M20 cable gland for auxiliary contact cable
Please add M20 cable gland for Auxiliary contact cable
Rain protector: KSL20 (3600595)
Other AC sizes also available under specific name:
SOLAR POWER STATION ISOLATION SWITCH
and DC switches available under name KATKO PV
This product description is an automated translation of the original Finnish description.
POLYCARBONATE HOUSING IP66
Safety switch
3-pole / 3-Poles
AC-23/400V /63A/30kW
AC-23/690V /40A/37kW
Lockable handle
Includes cable glands
2xM32L (18-25mm)
Available separately:
Auxiliary contacts: KU1.V (1NO+1NC) 3600490 or
KU2.V (2NO+2NC) 3600491
(Note! Add M20 cable gland for auxiliary contact cable
Please add M20 cable gland for Auxiliary contact cable
Rain protector: KSL20 (3600595)
Other AC sizes also available under specific name:
SOLAR POWER STATION ISOLATION SWITCH
and DC switches available under name KATKO PV
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPCGB202
STK3600757
PLC3600757
GTIN/EAN6419410400074
Manufacturer part number40007
Vendor material number3600757
Basic information
Package measurements (L x W x H)190 x 144 x 131 mm
Package volume3.584 l
Package weight0.795 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.7621
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID53.93
