SAFETY SWITCH KUM 440 4x50A 400V 22kW
Product code
3600858

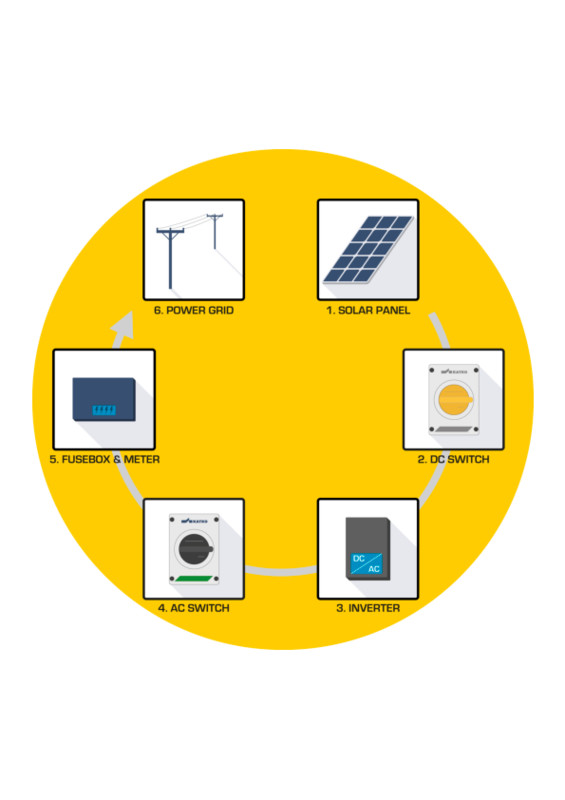

SOLAR POWER STATION ISOLATION SWITCH
Poly carbonate housing IP66
Safety switch
4-pole / 4-Poles
AC-23/400V /50A/22kW
AC-23/690V /32A/30kW
Lockable handle
Includes cable glands
2xM32 (15-21mm)
Available separately:
Auxiliary contacts: KU1.V (1NO+1NC) 3600490 or
KU2.V (2NO+2NC) 3600491
(Note! Add M16 cable gland for auxiliary contact cable
Please add M16 cable gland for Auxiliary contact cable
Rain protector: KSL20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu90 A
Rated permanent current at AC-23, 400 V50 A
Rated permanent current at AC-21, 400 V90 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V22 kW
Switching power at 400 V0 kW
Product codes
SAPCGB200
STK3600858
PLC3600858
GTIN/EAN6419410400050
Manufacturer part number40005
Vendor material number3600858
Basic information
Package measurements (L x W x H)130.4 x 96.4 x 106 mm
Package volume1.333 l
Package weight0.35 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.778
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID67.05
