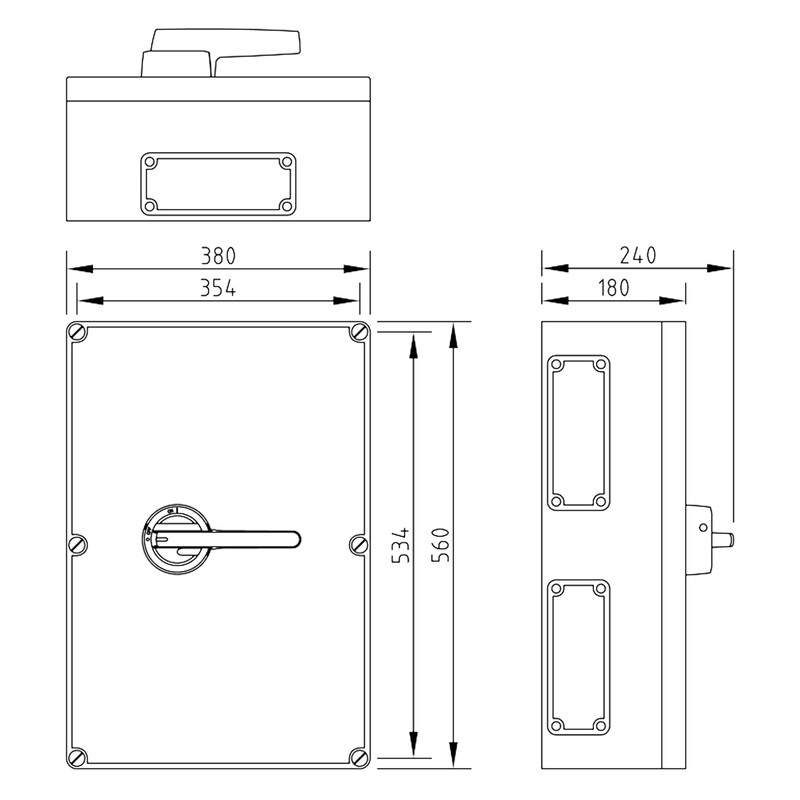

SAFETY SWITCH KUM 6125 6x125A 400V 1V 55kW
Product code
3600523
Polycarbonate enclosure IP65
This product is identical to KUM 6125VT1.V
Safety switch (IP65)
6-pole
AC-23/400V /125A/55kW
AC-23/690V /80A/75kW
Switch: KATKOn KU 3125 6-pole load switch
(Item no. 3600795)
(e.g. as spare part)
Padlockable knob
Includes auxiliary contact 1NO + 1NC
1.V160KU (3600819)
Includes 1.V160KU auxiliary contact
Cable information and directions must be specified when ordering.
Lugs up/down and 2 pieces on each side.
It is recommended to use connector KKL 1x120T (Item no. 1942102)
for cables 16 - 120mm.
Available separately:
Auxiliary contact:
2.V160KU (3600825) 2NO + 2NC This product description is an automated translation of the original Finnish description.
This product is identical to KUM 6125VT1.V
Safety switch (IP65)
6-pole
AC-23/400V /125A/55kW
AC-23/690V /80A/75kW
Switch: KATKOn KU 3125 6-pole load switch
(Item no. 3600795)
(e.g. as spare part)
Padlockable knob
Includes auxiliary contact 1NO + 1NC
1.V160KU (3600819)
Includes 1.V160KU auxiliary contact
Cable information and directions must be specified when ordering.
Lugs up/down and 2 pieces on each side.
It is recommended to use connector KKL 1x120T (Item no. 1942102)
for cables 16 - 120mm.
Available separately:
Auxiliary contact:
2.V160KU (3600825) 2NO + 2NC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu160 A
Rated permanent current at AC-23, 400 V125 A
Rated permanent current at AC-21, 400 V160 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V55 kW
Switching power at 400 V0 kW
Product codes
SAPALR423
STK3600523
PLC3600523
GTIN/EAN6419410365809
Manufacturer part number36580
Vendor material number3600523
Basic information
Package measurements (L x W x H)560 x 380 x 240 mm
Package volume51.072 l
Package weight7.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.55
GWP, uniteach
Source for GWP dataco2data.fi
