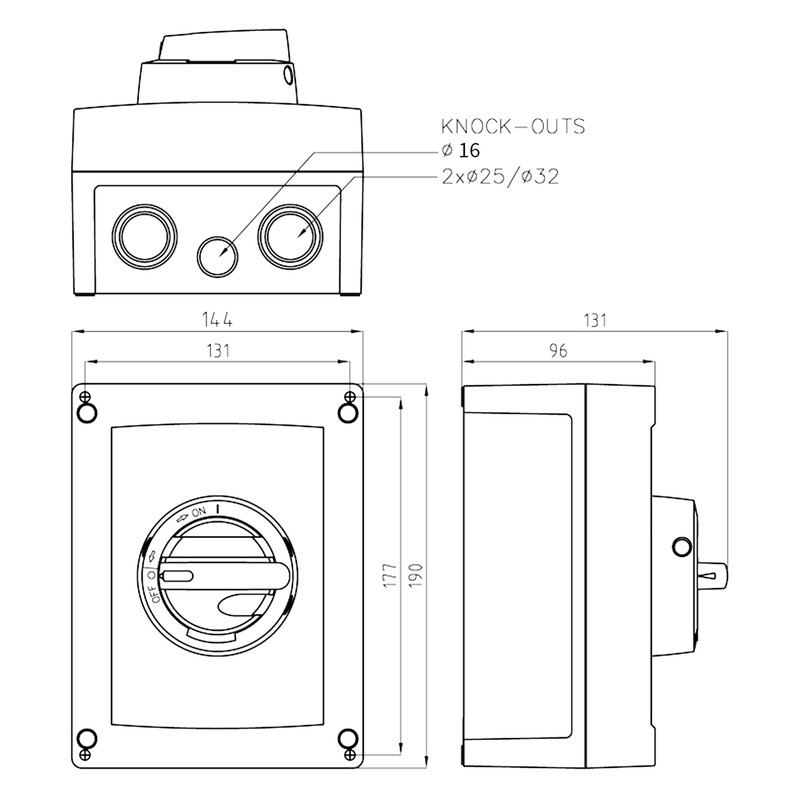

SAFETY SWITCH KUM 616 6x20A 400V 1V 7,5kW
Product code
3600707
Polycarbonate enclosure / with auxiliary contact IP 66
Safety switch
6-poles
AC-23/400V /20A/7.5kW
AC 23/690V /20A/15kW
Switching device: KATKOn KU 325N load switch (2 pcs)
(S: no 3600722)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM25 (11-17mm) + M16 (5-10mm)
Padlockable
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Safety switch
6-poles
AC-23/400V /20A/7.5kW
AC 23/690V /20A/15kW
Switching device: KATKOn KU 325N load switch (2 pcs)
(S: no 3600722)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM25 (11-17mm) + M16 (5-10mm)
Padlockable
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V20 A
Rated permanent current at AC-21, 400 V40 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V0 kW
Product codes
SAPCIF546
STK3600707
PLC3600707
GTIN/EAN6419410303719
Manufacturer part number30371
Vendor material number3600707
Basic information
Package measurements (L x W x H)190 x 144 x 135 mm
Package volume3.694 l
Package weight0.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
