SAFETY SWITCH KUM 6200A 6x200A 400V 1V 110kW
Product code
3600641
Polycarbonate enclosure IP65
Safety switch (IP65)
6-poles
AC-23/400V /200A/110kW
AC-23/690V /200A/160kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cables in and out from bottom.
Cable specifications to be specified when ordering.
Flange blanks: 2 pcs up / 2 pcs down and 2 pcs sideways.
Available separately:
Auxiliary contact: KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of discontinued products) This product description is an automated translation of the original Finnish description.
Safety switch (IP65)
6-poles
AC-23/400V /200A/110kW
AC-23/690V /200A/160kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cables in and out from bottom.
Cable specifications to be specified when ordering.
Flange blanks: 2 pcs up / 2 pcs down and 2 pcs sideways.
Available separately:
Auxiliary contact: KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of discontinued products) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu200 A
Rated permanent current at AC-23, 400 V200 A
Rated permanent current at AC-21, 400 V200 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V110 kW
Switching power at 400 V0 kW
Product codes
SAPALR426
STK3600641
PLC3600641
GTIN/EAN6419410367001
Manufacturer part number36700
Vendor material number3600641
Basic information

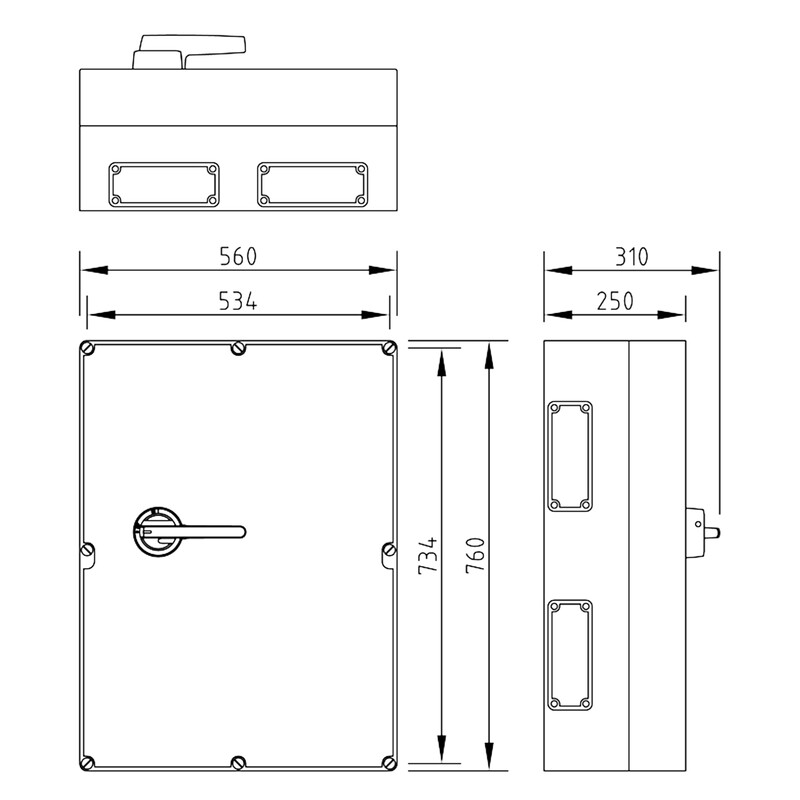

Package measurements (L x W x H)760 x 560 x 310 mm
Package volume131.936 l
Package weight13 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.8
GWP, uniteach
Source for GWP dataco2data.fi
