SAFETY SWITCH KUM 625 6x25A 400V 1V 11kW
Product code
3600709
Polycarbonate enclosure / with auxiliary contact IP66
Safety switch
6-poles
AC-23/400V /25A/11kW
AC 23/690V /25A/22kW
Switching device: KATKOn KU 340N load switch (2 pcs)
(S: no 3635101)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM25(11-17mm) +M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Safety switch
6-poles
AC-23/400V /25A/11kW
AC 23/690V /25A/22kW
Switching device: KATKOn KU 340N load switch (2 pcs)
(S: no 3635101)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM25(11-17mm) +M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V0 kW
Product codes
SAPCIF549
STK3600709
PLC3600709
GTIN/EAN6419410303733
Manufacturer part number30373
Vendor material number3600709
Basic information

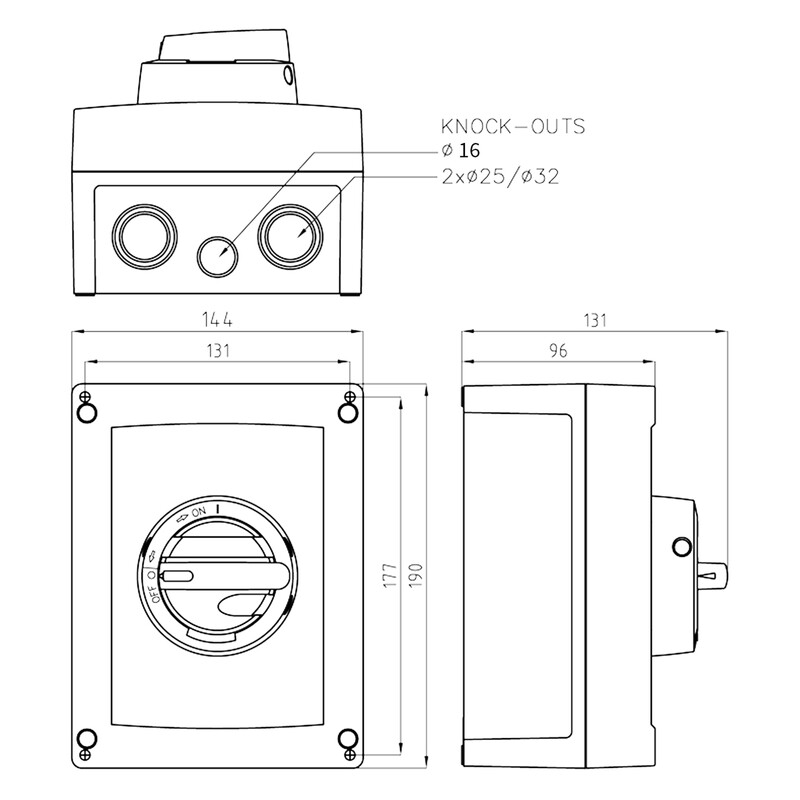

Package measurements (L x W x H)190 x 144 x 135 mm
Package volume3.694 l
Package weight0.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.4
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID6.08
