SAFETY SWITCH KUM 6250 6x250A 400V 1V 132kW
Product code
3600644
Polycarbonate enclosure IP65
Safety switch (IP65)
6-poles
AC-23/400V /250A/132kW
AC-23/690V /250A/250kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cable entry from top and exit from bottom.
Cable specifications must be specified when ordering.
Flange blanks: 2 up / 2 down and 2 sideways.
Available separately:
Auxiliary contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog for details) This product description is an automated translation of the original Finnish description.
Safety switch (IP65)
6-poles
AC-23/400V /250A/132kW
AC-23/690V /250A/250kW
Polycarbonate
Lockable knob
Includes auxiliary contact 1NO+1NC
Cable entry from top and exit from bottom.
Cable specifications must be specified when ordering.
Flange blanks: 2 up / 2 down and 2 sideways.
Available separately:
Auxiliary contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog for details) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu250 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V132 kW
Switching power at 400 V0 kW
Product codes
SAPALR427
STK3600644
PLC3600644
GTIN/EAN6419410367209
Manufacturer part number36720
Vendor material number3600644
Basic information

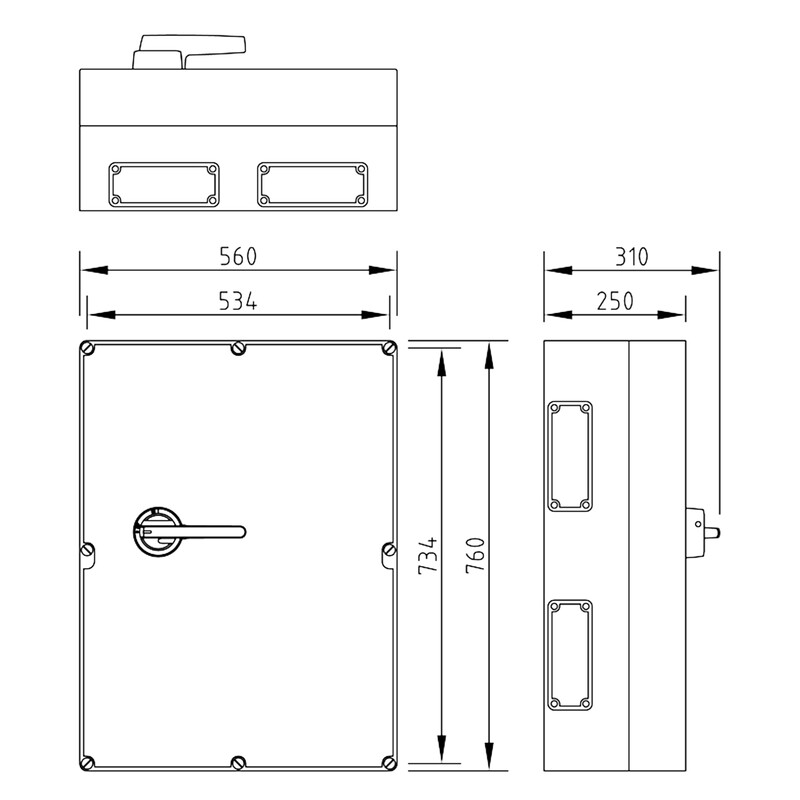

Package measurements (L x W x H)760 x 560 x 310 mm
Package volume131.936 l
Package weight13 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.8
GWP, uniteach
Source for GWP dataco2data.fi
