SAFETY SWITCH KUM 640 6x50A 400V 1V 22kW
Product code
3600726
Polycarbonate enclosure / with auxiliary contact IP66
Safety switch
6-poles
AC-23/400V /50A/22kW
AC 23/690V /32A/30kW
Switching device: KATKOn KU 463N load switch (2 pcs)
(S: no 3600733)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM32(15-21mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Safety switch
6-poles
AC-23/400V /50A/22kW
AC 23/690V /32A/30kW
Switching device: KATKOn KU 463N load switch (2 pcs)
(S: no 3600733)
(e.g. as spare part)
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM32(15-21mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu90 A
Rated permanent current at AC-23, 400 V50 A
Rated permanent current at AC-21, 400 V90 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V22 kW
Switching power at 400 V0 kW
Product codes
SAPCIF552
STK3600726
PLC3600726
GTIN/EAN6419410303870
Manufacturer part number30387
Vendor material number3600726
Basic information

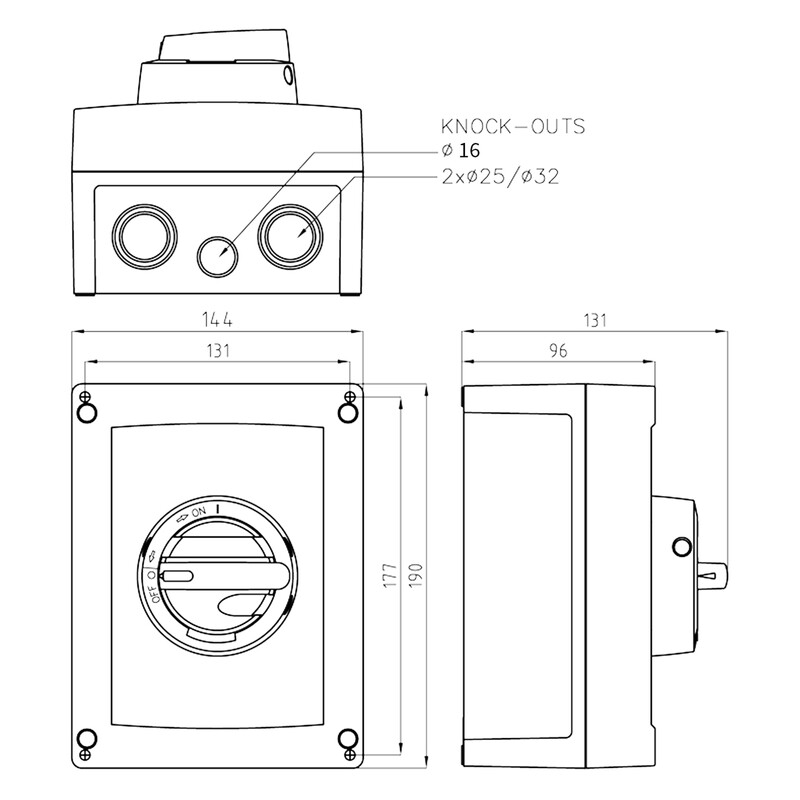

Package measurements (L x W x H)190 x 144 x 135 mm
Package volume3.694 l
Package weight1.25 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)9.75
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID4.02
