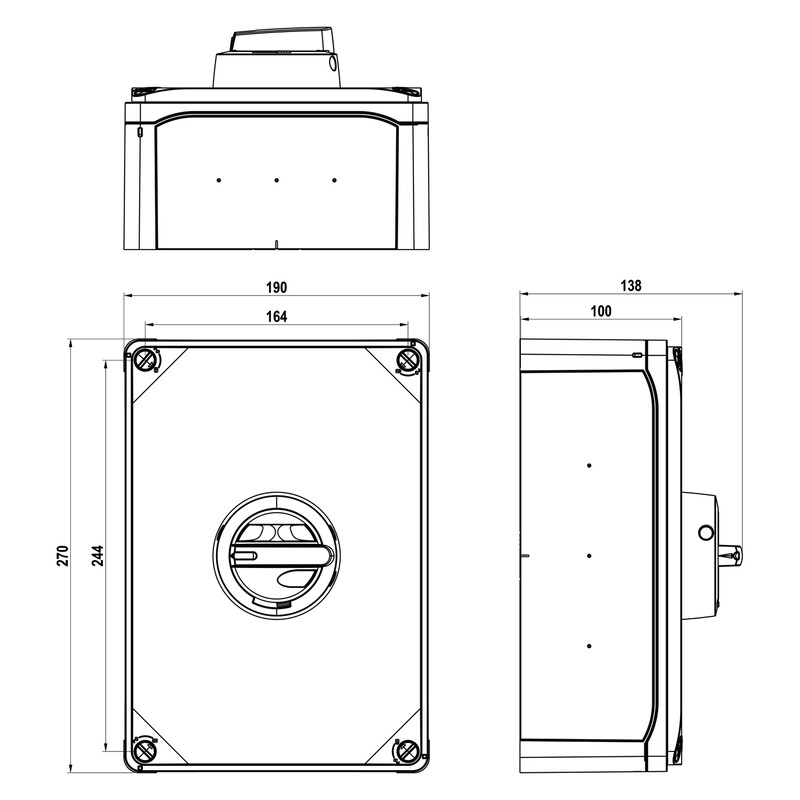

SAFETY SWITCH KUM 663 6x63A 400V 1V 30kW
Product code
3600710
Polycarbonate enclosure / with auxiliary contact IP66
Safety switch
6-poles
AC-23/400V /63A/30kW
AC 23/690V /40A/37kW
Switching device: KATKO KU 380N load switch (2 pcs)
(S: no 3635104)
(e.g. as spare part)
Padlockable knob 7
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM32L(18-25mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Safety switch
6-poles
AC-23/400V /63A/30kW
AC 23/690V /40A/37kW
Switching device: KATKO KU 380N load switch (2 pcs)
(S: no 3635104)
(e.g. as spare part)
Padlockable knob 7
Includes auxiliary contact KU1.V (1NO+1NC)
Includes cable glands 4xM32L(18-25mm)
+M16(5-10mm)
Available separately:
KU2.V with auxiliary contact (2NO+2NC)
Rain protector KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPCIF563
STK3600710
PLC3600710
GTIN/EAN6419410303740
Manufacturer part number30374
Vendor material number3600710
Basic information
Package measurements (L x W x H)260 x 140 x 182 mm
Package volume6.625 l
Package weight1.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)13.247
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID4.02
