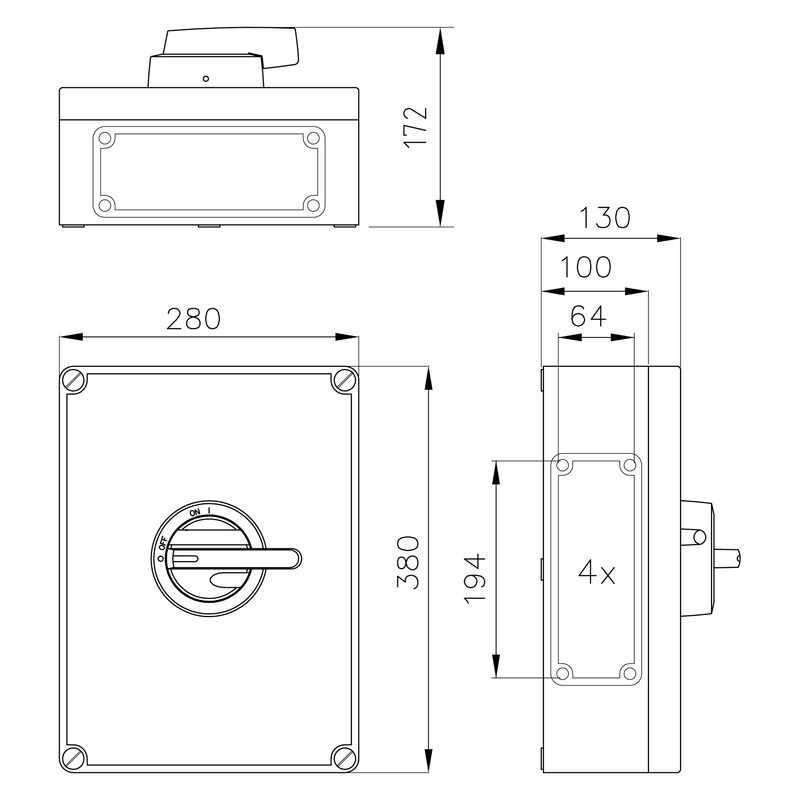

SAFETY SWITCH KUM 680 6x80A 400V 1V 45kW
Product code
3600512
Polycarbonate enclosure IP65
Safety switch (IP65)
6-poles
AC-23/400V /80A/45kW
AC-23/690V /63A/55kW
Switching device: KATKOn KU 3100 6-pole load switch
(S: no 3600794)
(e.g. as spare part)
Polycarbonate enclosure
Padlockable
Includes auxiliary contact 1.V160KU (3600819) 1NO + 1NC
Includes 1.V160KU aux.contact
Cable information and directions must be specified when ordering.
Flange openings up/down and sideways.
Max. 2 x M63 + M16 gland seals/flange.
It is recommended to use connector KKL 1x120T (S: no 1942102)
For cables 16 - 120mm.
Available separately:
Auxiliary contact:
2.V160KU (3600825) 2NO + 2NC This product description is an automated translation of the original Finnish description.
Safety switch (IP65)
6-poles
AC-23/400V /80A/45kW
AC-23/690V /63A/55kW
Switching device: KATKOn KU 3100 6-pole load switch
(S: no 3600794)
(e.g. as spare part)
Polycarbonate enclosure
Padlockable
Includes auxiliary contact 1.V160KU (3600819) 1NO + 1NC
Includes 1.V160KU aux.contact
Cable information and directions must be specified when ordering.
Flange openings up/down and sideways.
Max. 2 x M63 + M16 gland seals/flange.
It is recommended to use connector KKL 1x120T (S: no 1942102)
For cables 16 - 120mm.
Available separately:
Auxiliary contact:
2.V160KU (3600825) 2NO + 2NC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu125 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V125 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V45 kW
Switching power at 400 V0 kW
Product codes
SAPALR422
STK3600512
PLC3600512
GTIN/EAN6419410365601
Manufacturer part number36560
Vendor material number3600512
Basic information
Package measurements (L x W x H)380 x 280 x 185 mm
Package volume19.684 l
Package weight3.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.942
GWP, uniteach
Source for GWP dataco2data.fi
