SAFETY SWITCH KUR 3125 3x125A 1V 55kW ATEx
Product code
3602822
Acid-resistant stainless steel housing / Stainless steel (AISI 316), ATEX, IP66
Zone 22, Equipment Group 3
Safety switch ATEX / Safety switch ATEX (AISI 316 / IP66)
3-pole / 3-Poles
AC-23/400V /125A/55kW
AC-23/690V /80A/75kW
Padlockable knob / Padlockable
Includes auxiliary contact 1.V160KU (3600819) 1NO + 1NC
Includes 1.V160KU aux.contact
Includes cable glands / Includes cable glands
2xM50EX (24-35mm) + M16EX
Available separately / available separately
2.V160KU (3600825) 2NO + 2NC This product description is an automated translation of the original Finnish description.
Zone 22, Equipment Group 3
Safety switch ATEX / Safety switch ATEX (AISI 316 / IP66)
3-pole / 3-Poles
AC-23/400V /125A/55kW
AC-23/690V /80A/75kW
Padlockable knob / Padlockable
Includes auxiliary contact 1.V160KU (3600819) 1NO + 1NC
Includes 1.V160KU aux.contact
Includes cable glands / Includes cable glands
2xM50EX (24-35mm) + M16EX
Available separately / available separately
2.V160KU (3600825) 2NO + 2NC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Explosion proof switch (EC000522)
Housing materialStainless steel
ModelOff switch
Number of poles3
For Ex-zone dust22
Degree of protection (IP)IP66
Protection class according to IEC 61140III
Ambient temperature-20-40 °C
Housing colourStainless steel
Mounting methodSurface mounting
Height0 mm
Width0 mm
Depth0 mm
Interlockableno
Padlock lockingno
Voltage typeAC
Product codes
SAPALR451
STK3602822
PLC3602822
GTIN/EAN6419410305935
Manufacturer part number30593
Vendor material number3602822
Basic information

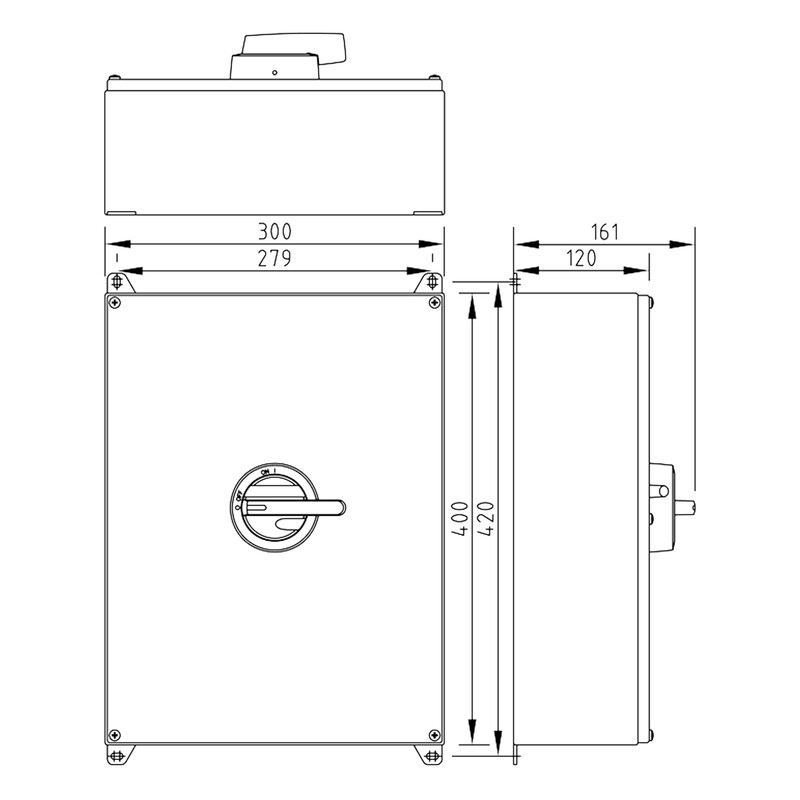

Package measurements (L x W x H)400 x 300 x 161 mm
Package volume19.32 l
Package weight8.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122209
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
