SAFETY SWITCH KUR 3125 3x125A 400V 1V 55kW
Product code
3600882
Acid-resistant stainless steel enclosure IP66 (AISI 316)
The product is the same as KUR 3125VT1.V
Safety switch (IP66)
3-pole
AC-23/400V / 125A / 55kW
AC-23/690V / 80A / 75kW
Acid-resistant / Stainless steel (AISI 316)
Padlockable knob
Includes 1.V160KU auxiliary contact
Includes 1.V160KU auxiliary contact
1NO + 1NC
Cable information and routing must be specified when ordering.
Available separately:
Auxiliary contact:
2.V160KU (3600825) 2NO + 2NC
Cable connectors according to cable information
Also available with stainless steel enclosure (AISI 304)
Available also (AISI 304) This product description is an automated translation of the original Finnish description.
The product is the same as KUR 3125VT1.V
Safety switch (IP66)
3-pole
AC-23/400V / 125A / 55kW
AC-23/690V / 80A / 75kW
Acid-resistant / Stainless steel (AISI 316)
Padlockable knob
Includes 1.V160KU auxiliary contact
Includes 1.V160KU auxiliary contact
1NO + 1NC
Cable information and routing must be specified when ordering.
Available separately:
Auxiliary contact:
2.V160KU (3600825) 2NO + 2NC
Cable connectors according to cable information
Also available with stainless steel enclosure (AISI 304)
Available also (AISI 304) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu160 A
Rated permanent current at AC-23, 400 V125 A
Rated permanent current at AC-21, 400 V160 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V55 kW
Switching power at 400 V0 kW
Product codes
SAPALR473
STK3600882
PLC3600882
GTIN/EAN6419410312902
Manufacturer part number31290
Vendor material number3600882
Basic information

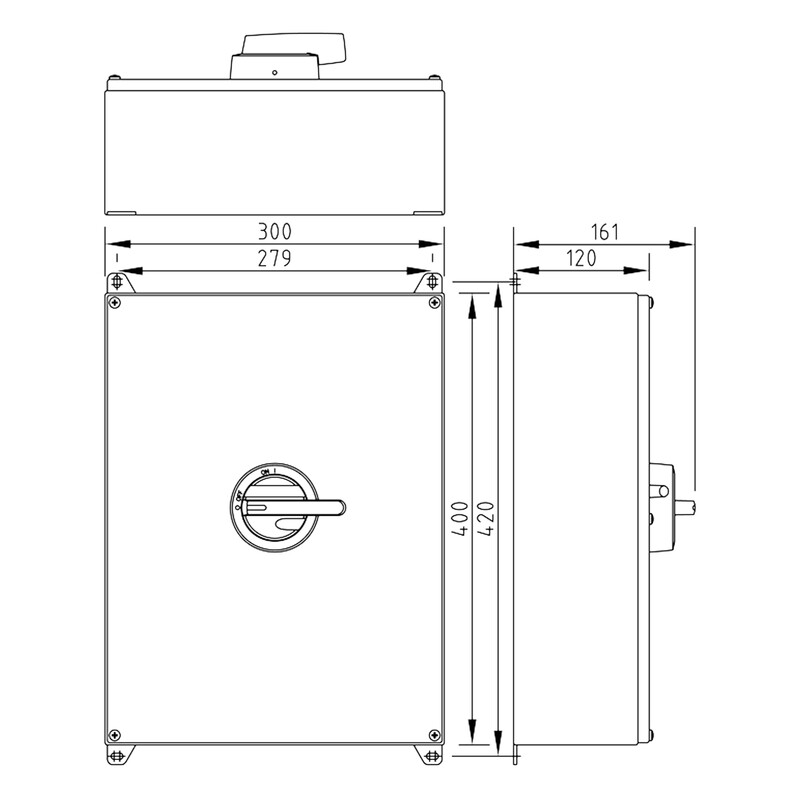

Package measurements (L x W x H)400 x 300 x 161 mm
Package volume19.32 l
Package weight8.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)272.085
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID53.73
