SAFETY SWITCH KUR 625 6x25A 400V 1V 11kW
Product code
3600885
Acid-resistant stainless steel enclosure IP66 (AISI 316)
Safety switch (IP66)
6-poles
AC-23/400V / 25A / 11kW
AC-23/690V / 25A / 22kW
Acid-resistant enclosure / Stainless steel enclosure (AISI 316)
Padlockable
Includes auxiliary contact (1NO+1NC)
Includes cable glands
4xM25(11-16mm) + M16(5-10mm)
Available separately:
Aux.contact:
KU2.V (2NO+2NC) (3600491)
Also available with stainless steel enclosure (AISI 304)
Also available (AISI 304) This product description is an automated translation of the original Finnish description.
Safety switch (IP66)
6-poles
AC-23/400V / 25A / 11kW
AC-23/690V / 25A / 22kW
Acid-resistant enclosure / Stainless steel enclosure (AISI 316)
Padlockable
Includes auxiliary contact (1NO+1NC)
Includes cable glands
4xM25(11-16mm) + M16(5-10mm)
Available separately:
Aux.contact:
KU2.V (2NO+2NC) (3600491)
Also available with stainless steel enclosure (AISI 304)
Also available (AISI 304) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V0 kW
Product codes
SAPALR470
STK3600885
PLC3600885
GTIN/EAN6419410312421
Manufacturer part number31242
Vendor material number3600885
Basic information

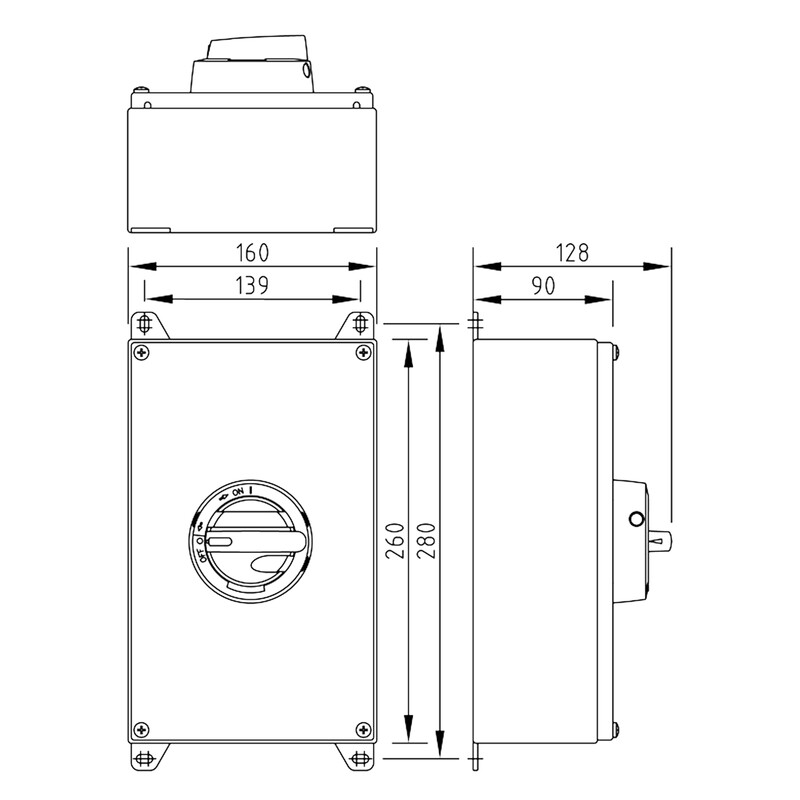

Package measurements (L x W x H)280 x 160 x 125 mm
Package volume5.6 l
Package weight2.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)34.45
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID6.65
