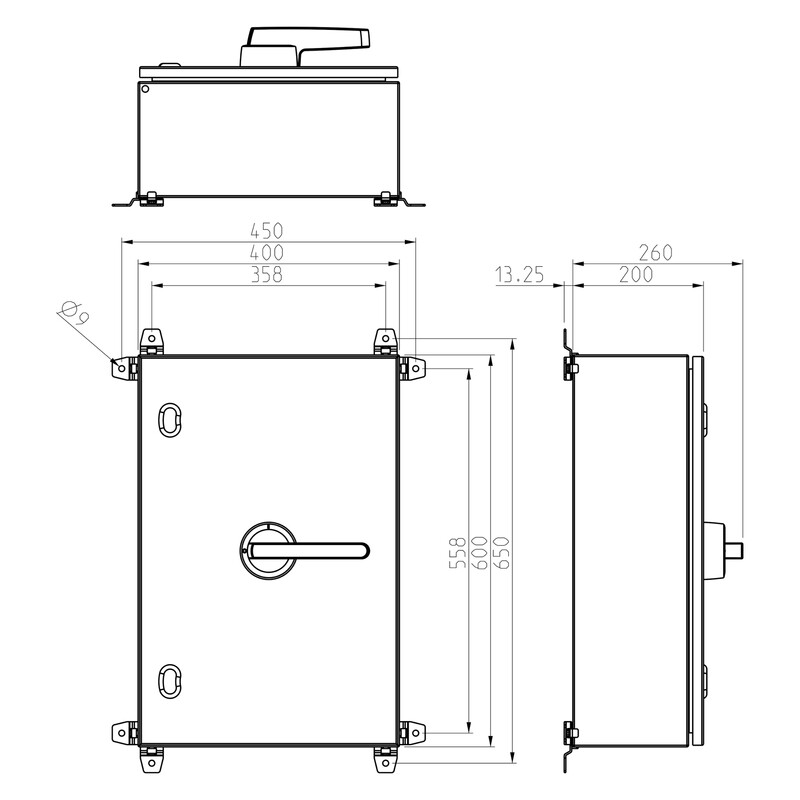

SAFETY SWITCH KUT 3200 3x200A 400V 1V 110kW
Product code
3600662
Sheet steel enclosures IP65
Galvanized steel sheet / electrophoretic coating / powder coating
Safety switch / Safety switch
3-pole / 3-Poles
AC-23/400V / 200A / 110kW
AC-23/690V / 200A / 160kW
Padlockable / Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cable entry from top and exit from bottom.
Cable details must be specified when ordering if cable entries are required.
Available separately / Available separately:
Auxiliary contact / Aux.contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of circuit breakers) This product description is an automated translation of the original Finnish description.
Galvanized steel sheet / electrophoretic coating / powder coating
Safety switch / Safety switch
3-pole / 3-Poles
AC-23/400V / 200A / 110kW
AC-23/690V / 200A / 160kW
Padlockable / Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cable entry from top and exit from bottom.
Cable details must be specified when ordering if cable entries are required.
Available separately / Available separately:
Auxiliary contact / Aux.contact:
KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of circuit breakers) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu200 A
Rated permanent current at AC-23, 400 V200 A
Rated permanent current at AC-21, 400 V200 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V110 kW
Switching power at 400 V0 kW
Product codes
SAPALR453
STK3600662
PLC3600662
GTIN/EAN6419410374009
Manufacturer part number37400
Vendor material number3600662
Basic information
Package measurements (L x W x H)600 x 380 x 270 mm
Package volume61.56 l
Package weight20 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)875.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID25.81
