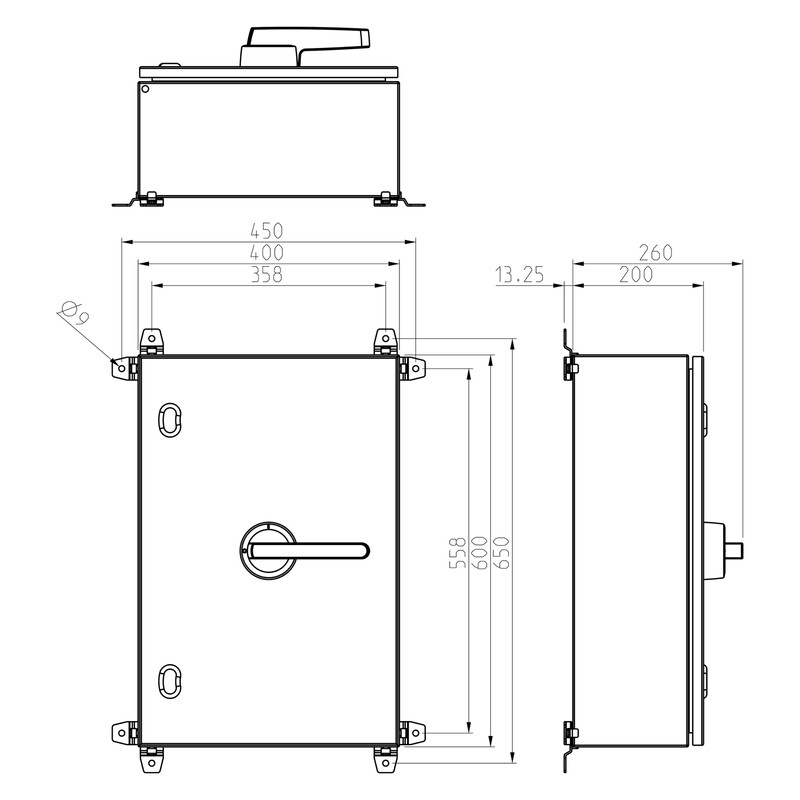

SAFETY SWITCH KUT 3250 3x250A 400V 1V 132kW
Product code
3600672
Sheet steel enclosure IP65
Galvanized steel sheet / electrophoretic coating / powder coating
Safety switch
3-pole
AC-23/400V / 250A / 132kW
AC-23/690V / 250A / 250kW
Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cable entry from top and exit from bottom.
Cable information must be specified when ordering if cable entries are required.
Available separately:
Auxiliary contact: KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of accessories) This product description is an automated translation of the original Finnish description.
Galvanized steel sheet / electrophoretic coating / powder coating
Safety switch
3-pole
AC-23/400V / 250A / 132kW
AC-23/690V / 250A / 250kW
Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cable entry from top and exit from bottom.
Cable information must be specified when ordering if cable entries are required.
Available separately:
Auxiliary contact: KVKE2.V (2NO+2NC) (3662284)
Terminal blocks (see catalog of accessories) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu250 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V132 kW
Switching power at 400 V0 kW
Product codes
SAPAAZ932
STK3600672
PLC3600672
GTIN/EAN6419410374603
Manufacturer part number37460
Vendor material number3600672
Basic information
Package measurements (L x W x H)600 x 380 x 210 mm
Package volume47.88 l
Package weight22 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
