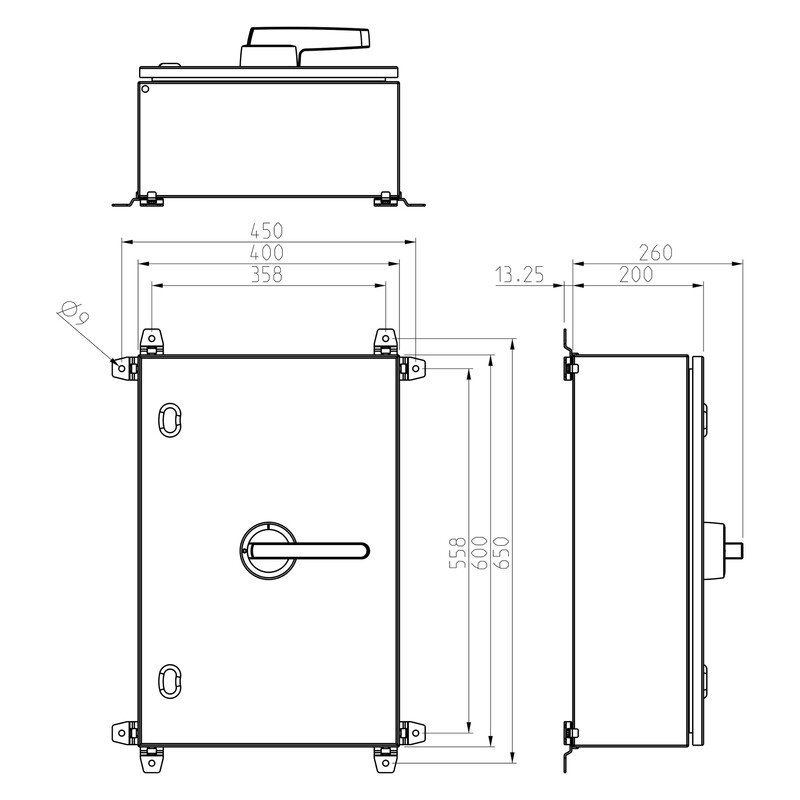

SAFETY SWITCH KUT 3250Y 3x250A 400V 1V 132kW
Product code
3600674
Sheet steel enclosure IP65
Galvanized steel sheet / electrophoretic coating / powder coating
Sheet steel / Electrophoretic coating / powder coating
Safety switch
3-pole
AC-23/400V / 250A / 132kW
AC-23/690V / 250A / 250kW
Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cables in and out from the top.
Cable information must be specified when ordering.
Available separately:
Auxiliary contact KVKE2.V (2NO + 2NC) (3662284)
Terminal blocks (see catalog for details) This product description is an automated translation of the original Finnish description.
Galvanized steel sheet / electrophoretic coating / powder coating
Sheet steel / Electrophoretic coating / powder coating
Safety switch
3-pole
AC-23/400V / 250A / 132kW
AC-23/690V / 250A / 250kW
Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cables in and out from the top.
Cable information must be specified when ordering.
Available separately:
Auxiliary contact KVKE2.V (2NO + 2NC) (3662284)
Terminal blocks (see catalog for details) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu250 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V132 kW
Switching power at 400 V0 kW
Product codes
SAPALR456
STK3600674
PLC3600674
GTIN/EAN6419410374702
Manufacturer part number37470
Vendor material number3600674
Basic information
Package measurements (L x W x H)600 x 380 x 270 mm
Package volume61.56 l
Package weight20 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)875.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID4.66
