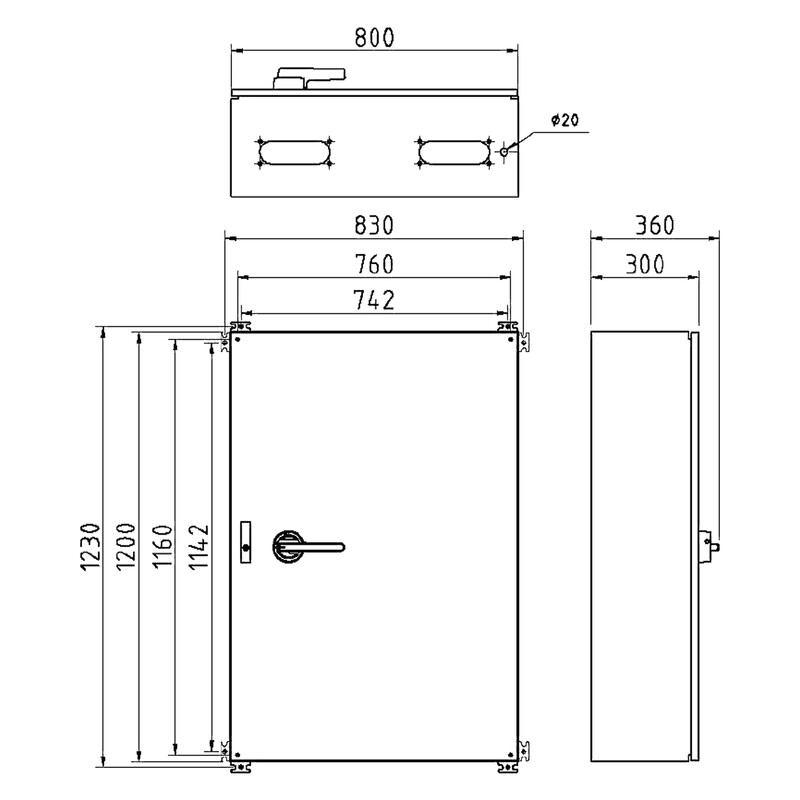

SAFETY SWITCH KUT 3800 3x800A 400V 1V 400kW
Product code
3600688
Teräskoteloitu, Sheet steel enclosure IP65
Galvanized steel sheet / electrophoresis / powder coating
Safety switch
3-poles
AC-23/400V / 800A / 400kW
AC-23/690V / 800A / 800kW
Padlockable
Includes aux.contact 1.V160KU (1NO + 1NC) S:nro 3600819
Cables in from top and out from bottom.
Cable information to be specified when ordering.
Available separately:
Aux. contact: 2.V160KU (2NO+2NC) (3600825)
Terminal blocks (see catalog)
Available with KUT 3800T1VCE with through connections and terminals pre-installed (3602897)
Additionally available with rain roof: KSL100 (3600704) This product description is an automated translation of the original Finnish description.
Galvanized steel sheet / electrophoresis / powder coating
Safety switch
3-poles
AC-23/400V / 800A / 400kW
AC-23/690V / 800A / 800kW
Padlockable
Includes aux.contact 1.V160KU (1NO + 1NC) S:nro 3600819
Cables in from top and out from bottom.
Cable information to be specified when ordering.
Available separately:
Aux. contact: 2.V160KU (2NO+2NC) (3600825)
Terminal blocks (see catalog)
Available with KUT 3800T1VCE with through connections and terminals pre-installed (3602897)
Additionally available with rain roof: KSL100 (3600704) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu1000 A
Rated permanent current at AC-23, 400 V1000 A
Rated permanent current at AC-21, 400 V1000 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw60 kA
Rated operation power at AC-23, 400 V560 kW
Switching power at 400 V0 kW
Product codes
SAPALR458
STK3600688
PLC3600688
GTIN/EAN6419410376003
Manufacturer part number37600
Vendor material number3600688
Basic information
Package measurements (L x W x H)1200 x 600 x 360 mm
Package volume259.2 l
Package weight60 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)9733.8
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID12.7
