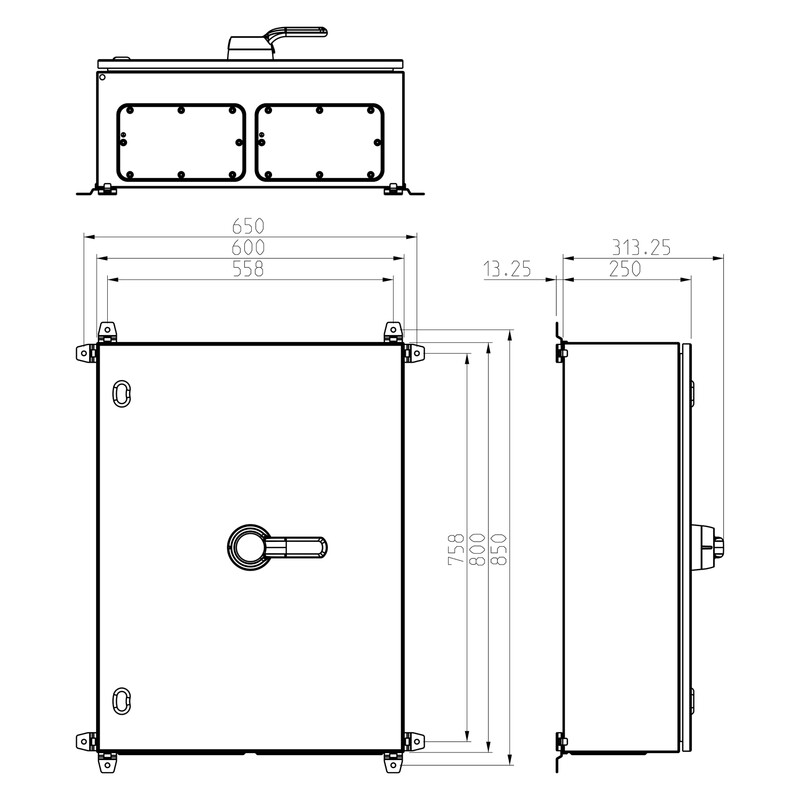

SAFETY SWITCH KUT 6200Y 6x200A 400V 1V 110kW
Product code
3600690
Sheet steel enclosure IP65
Galvanized steel sheet / Electrophoretic coating / powder coating
Safety switch
6-poles
AC-23/400V / 200A / 110kW
AC-23/690V / 200A / 160kW
Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cables in and out from the top.
Cable information must be specified when ordering.
Available separately:
Auxiliary contact KVKE2.V (2NO + 2NC) (3662284)
Terminal blocks (see circuit breaker product list) This product description is an automated translation of the original Finnish description.
Galvanized steel sheet / Electrophoretic coating / powder coating
Safety switch
6-poles
AC-23/400V / 200A / 110kW
AC-23/690V / 200A / 160kW
Padlockable
Includes auxiliary contact KVKE1.V (1NO + 1NC)
Includes aux.contact (1NO + 1NC)
Cables in and out from the top.
Cable information must be specified when ordering.
Available separately:
Auxiliary contact KVKE2.V (2NO + 2NC) (3662284)
Terminal blocks (see circuit breaker product list) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu200 A
Rated permanent current at AC-23, 400 V200 A
Rated permanent current at AC-21, 400 V200 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V110 kW
Switching power at 400 V0 kW
Product codes
SAPALR462
STK3600690
PLC3600690
GTIN/EAN6419410371909
Manufacturer part number37190
Vendor material number3600690
Basic information
Package measurements (L x W x H)800 x 600 x 310 mm
Package volume148.8 l
Package weight40 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)60.
GWP, uniteach
Source for GWP dataco2data.fi
