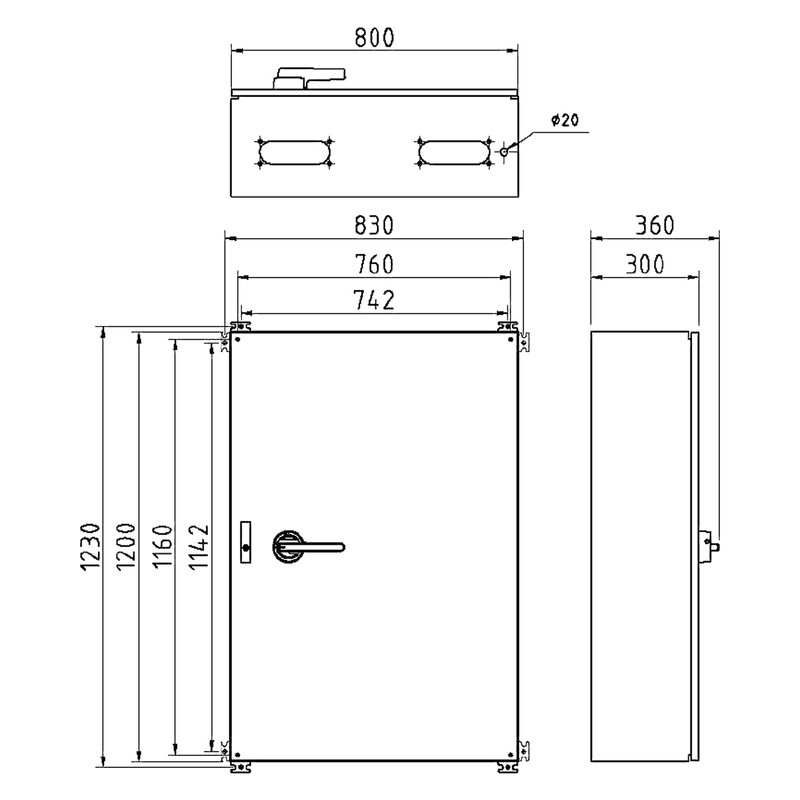

SAFETY SWITCH KUT 6630 6x630A 400V 1V 355kW
Product code
3600699
Sheet steel enclosure IP65
Galvanized steel sheet / electrophoresis / powder coating
Safety switch
6-poles
AC-23 / 400V / 630A / 355kW
AC-23 / 690V / 630A / 630kW
Padlockable
Includes aux.contact
1.V160KU (1NO + 1NC) S-no 3600819
Cables in from above and out from below.
Cable information must be specified when ordering.
Available separately:
Aux. contact:
2.V160KU (2NO+2NC) (3600825)
Terminal blocks (see catalog) This product description is an automated translation of the original Finnish description.
Galvanized steel sheet / electrophoresis / powder coating
Safety switch
6-poles
AC-23 / 400V / 630A / 355kW
AC-23 / 690V / 630A / 630kW
Padlockable
Includes aux.contact
1.V160KU (1NO + 1NC) S-no 3600819
Cables in from above and out from below.
Cable information must be specified when ordering.
Available separately:
Aux. contact:
2.V160KU (2NO+2NC) (3600825)
Terminal blocks (see catalog) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu630 A
Rated permanent current at AC-23, 400 V630 A
Rated permanent current at AC-21, 400 V630 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw10 kA
Rated operation power at AC-23, 400 V355 kW
Switching power at 400 V0 kW
Product codes
SAPALR468
STK3600699
PLC3600699
GTIN/EAN6419410372500
Manufacturer part number37250
Vendor material number3600699
Basic information
Package measurements (L x W x H)760 x 760 x 270 mm
Package volume155.952 l
Package weight54 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10232.46
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID3.52
