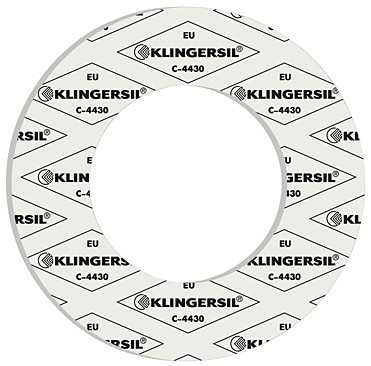

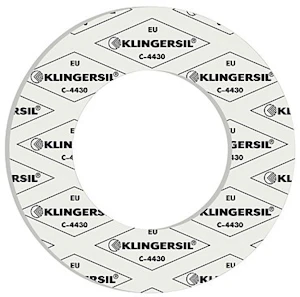

FLANGE GASKET FIBER KLINGER DN40 PN10-40 SIL C-4430 2,0
Product code
3261583
KLINGERsil® C-4430 is a general-purpose gasket suitable for temperatures up to 250 degrees. The gasket is made from an optimal combination of synthetic fibers and glass fibers bonded together with NBR binder. The material has excellent pressure resistance and is therefore particularly suitable for applications involving steam or hot water. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Graphite flange gasket (DIN) (EC010704)
Density1.8 g/cm³
Inlay typeOther
Gluedno
With anti-stick layerno
Flange compression stage (PN)10 - 10
Nominal diameter of flangeDN 40
Outer diameter92 mm
Inner diameter49 mm
Thickness2 mm
DVGW quality mark for gasyes
Product codes
SAPDLS770
HPAC3261583
PLC3261583
GTIN/EAN6415832615836
Manufacturer part numberQP1220040
Vendor material numberQP1220040
Basic information
Package measurements (L x W x H)92 x 92 x 2 mm
Package volume0.017 l
Package weight0.015 kg
Base uniteach
Package units1
Package contents–
UNSPSC31401503
BrandKLINGER
VendorKLINGER FINLAND OY
The country of origin stated by the supplierFinland
