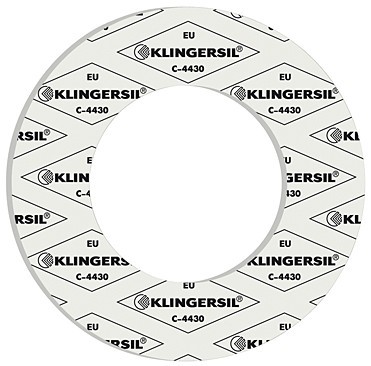

FLANGE GASKET FIBER KLINGER DN400 PN10 SIL C-4430 1,5
Product code
3261574
KLINGERsil® C-4430 is a general-purpose gasket suitable for temperatures up to 250 degrees. The gasket is made from an optimal combination of synthetic fibers and glass fibers bonded together with NBR binder. The material has excellent pressure resistance and is therefore particularly suitable for applications involving steam or hot water. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Graphite flange gasket (DIN) (EC010704)
Density1.8 g/cm³
Inlay typeOther
Gluedno
With anti-stick layerno
Flange compression stage (PN)10 - 10
Nominal diameter of flangeDN 400
Outer diameter489 mm
Inner diameter407 mm
Thickness1.5 mm
DVGW quality mark for gasyes
Product codes
SAPDLS764
HPAC3261574
PLC3261574
GTIN/EAN6415832615744
Manufacturer part numberQP1215400
Vendor material numberQP1215400
Basic information
Package measurements (L x W x H)489 x 489 x 2 mm
Package volume0.478 l
Package weight0.185 kg
Base uniteach
Package units1
Package contents–
UNSPSC31401503
BrandKLINGER
VendorKLINGER FINLAND OY
The country of origin stated by the supplierFinland
