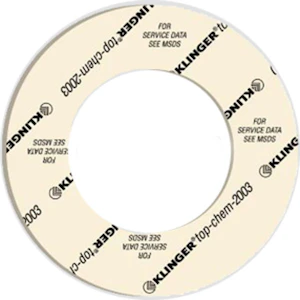

FLANGE GASKET PTFE KLINGER DN200 PN25 TOP-CHEM2003 2,0

Product code
3261879
KLINGER® top-chem 2003 is a modified PTFE gasket reinforced with hollow glass beads. Like top-chem 2000, this gasket has excellent chemical resistance to strong acids and bases. However, these two gasket materials differ in their mechanical properties, as KLINGER® top-chem 2003 is suitable for medium or low temperatures and loads. The gasket has excellent gas tightness even under low surface loading. For applications where the temperature exceeds 100°C and the surface load is high, KLINGER® top-chem 2000 is the more suitable gasket. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Graphite flange gasket (DIN) (EC010704)
Density1.7 g/cm³
Inlay typeOther
Gluedno
With anti-stick layerno
Flange compression stage (PN)25 - 25
Nominal diameter of flangeDN 200
Outer diameter284 mm
Inner diameter220 mm
Thickness2 mm
DVGW quality mark for gasyes

Product codes

SAPDLS895
HPAC3261879
PLC3261879
GTIN/EAN6415832618790
Manufacturer part numberQR2320201
Vendor material numberQR2320201

Basic information

Package measurements (L x W x H)284 x 284 x 2 mm
Package volume0.161 l
Package weight0.09 kg
Base uniteach
Package units1
Package contents
UNSPSC31401503
BrandKLINGER
VendorKLINGER FINLAND OY
The country of origin stated by the supplierFinland
