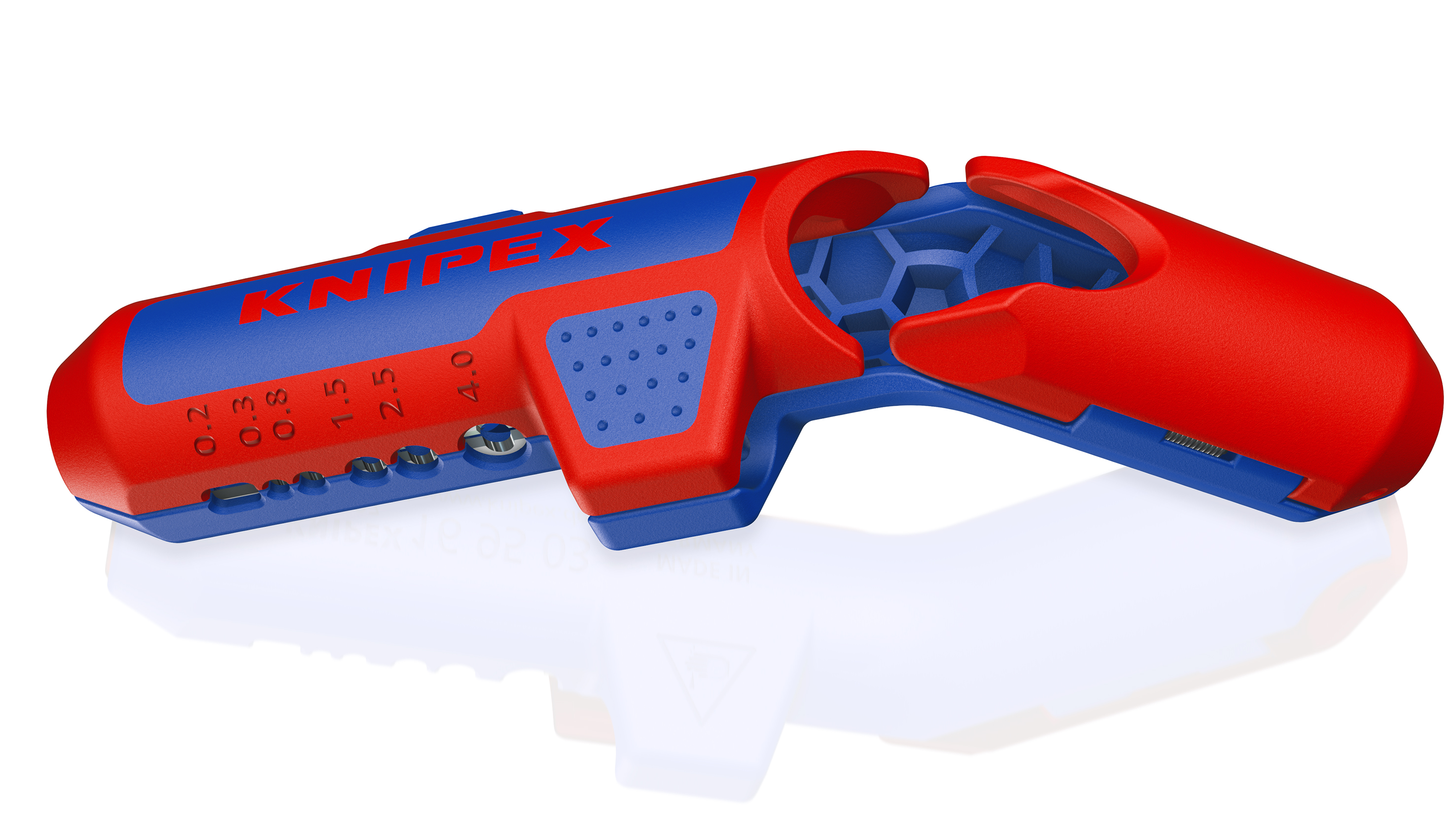

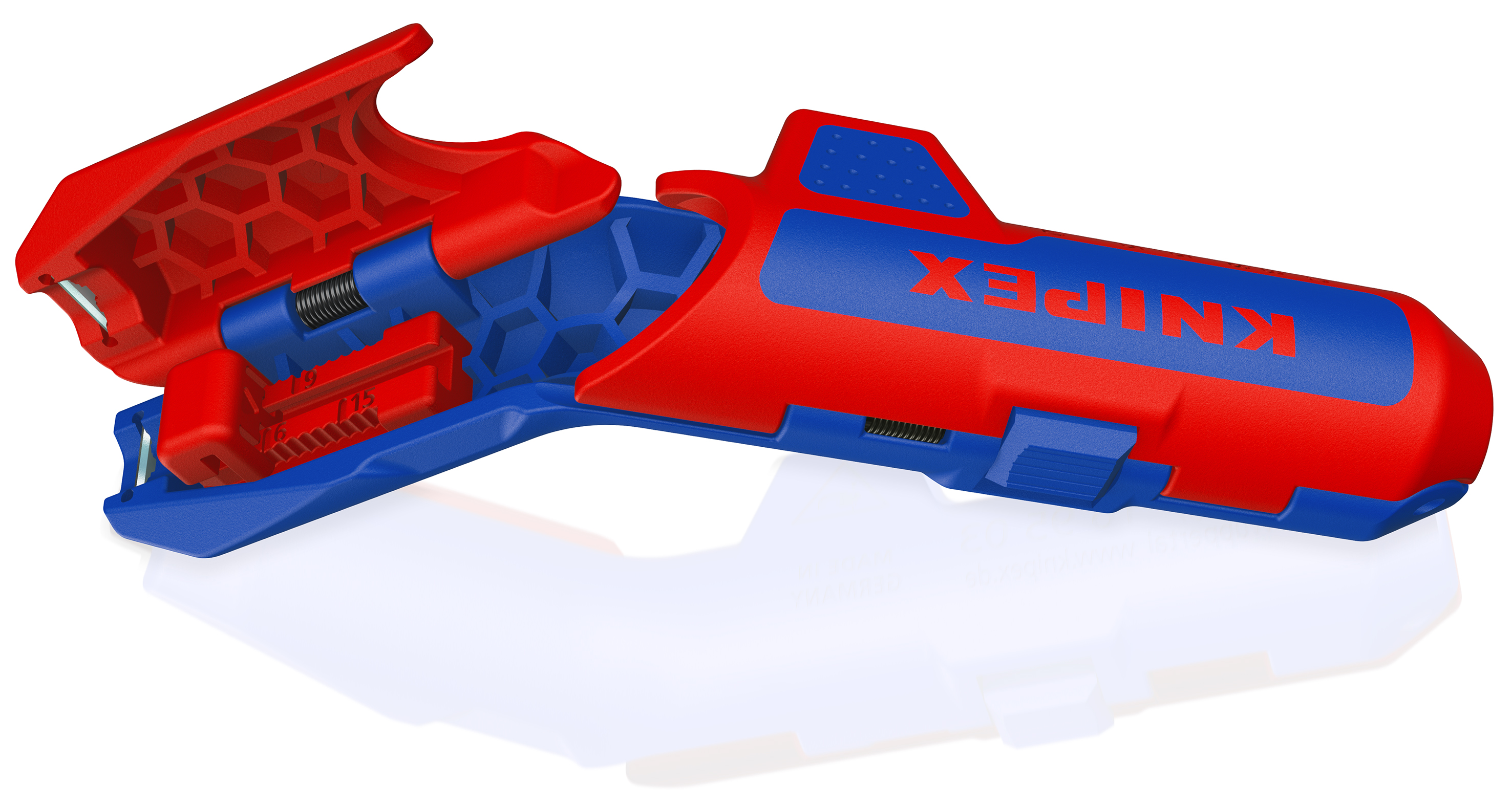

KNIPEX ERGOSTRIP 16 95 03 SB PV
Product code
DKW194

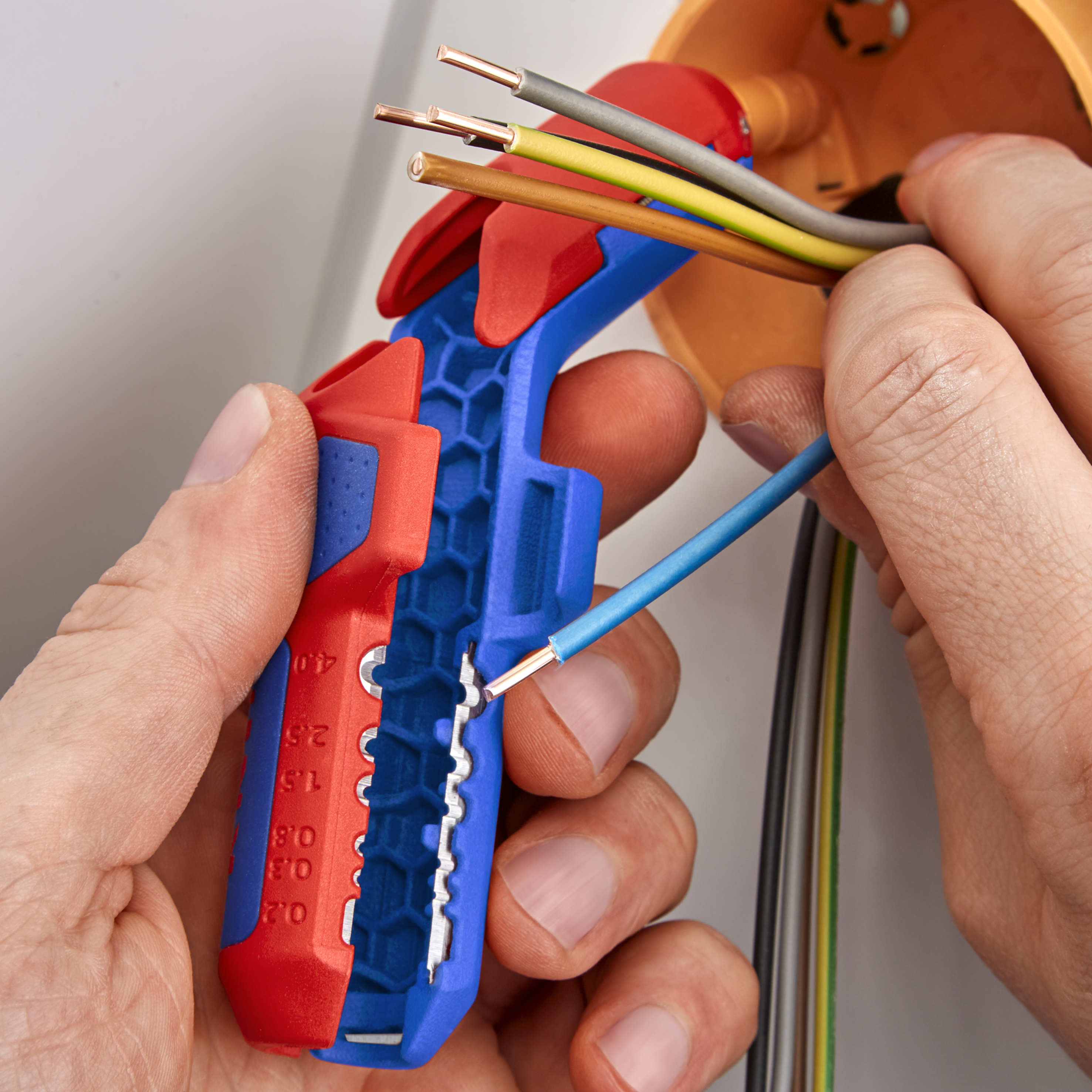

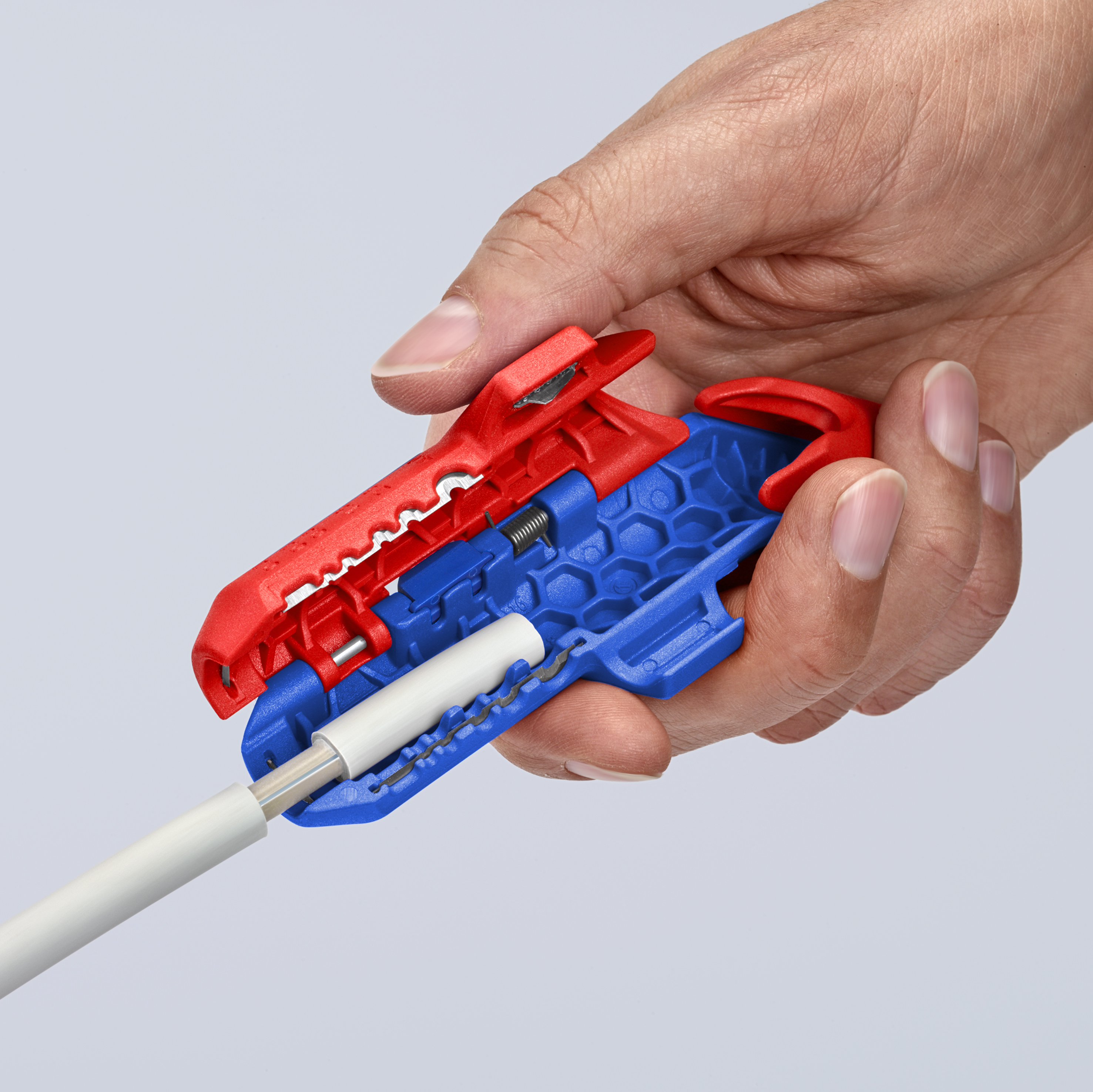

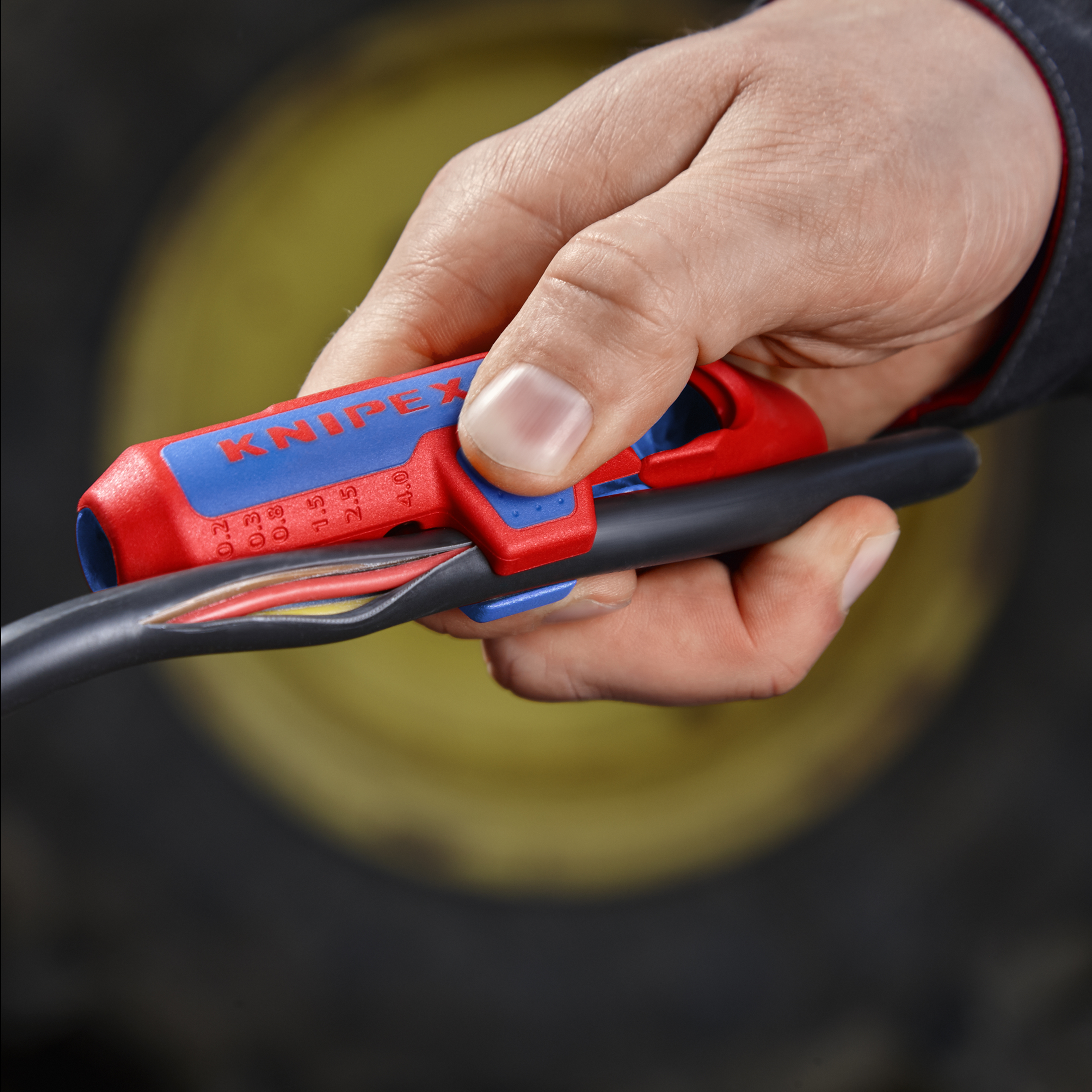

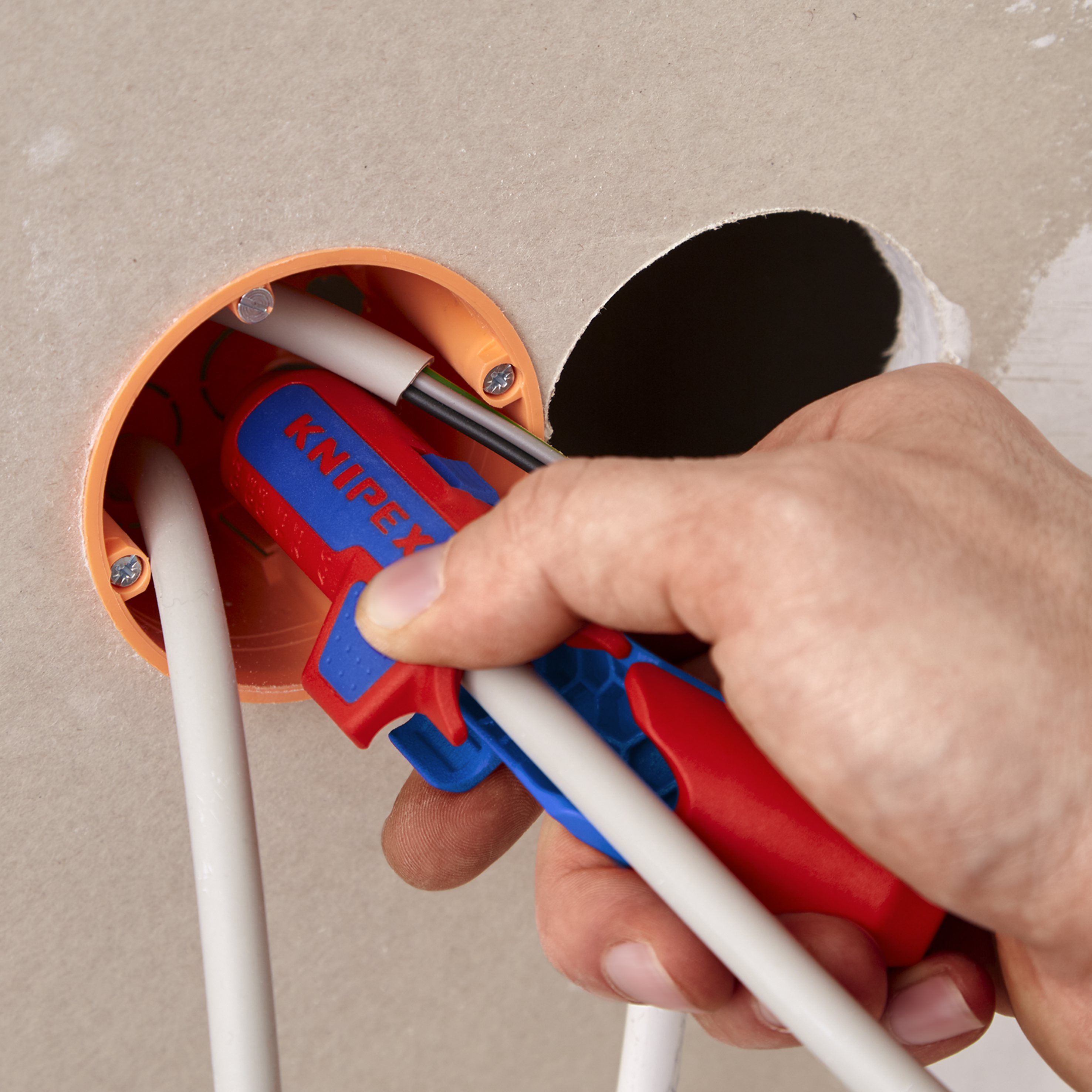

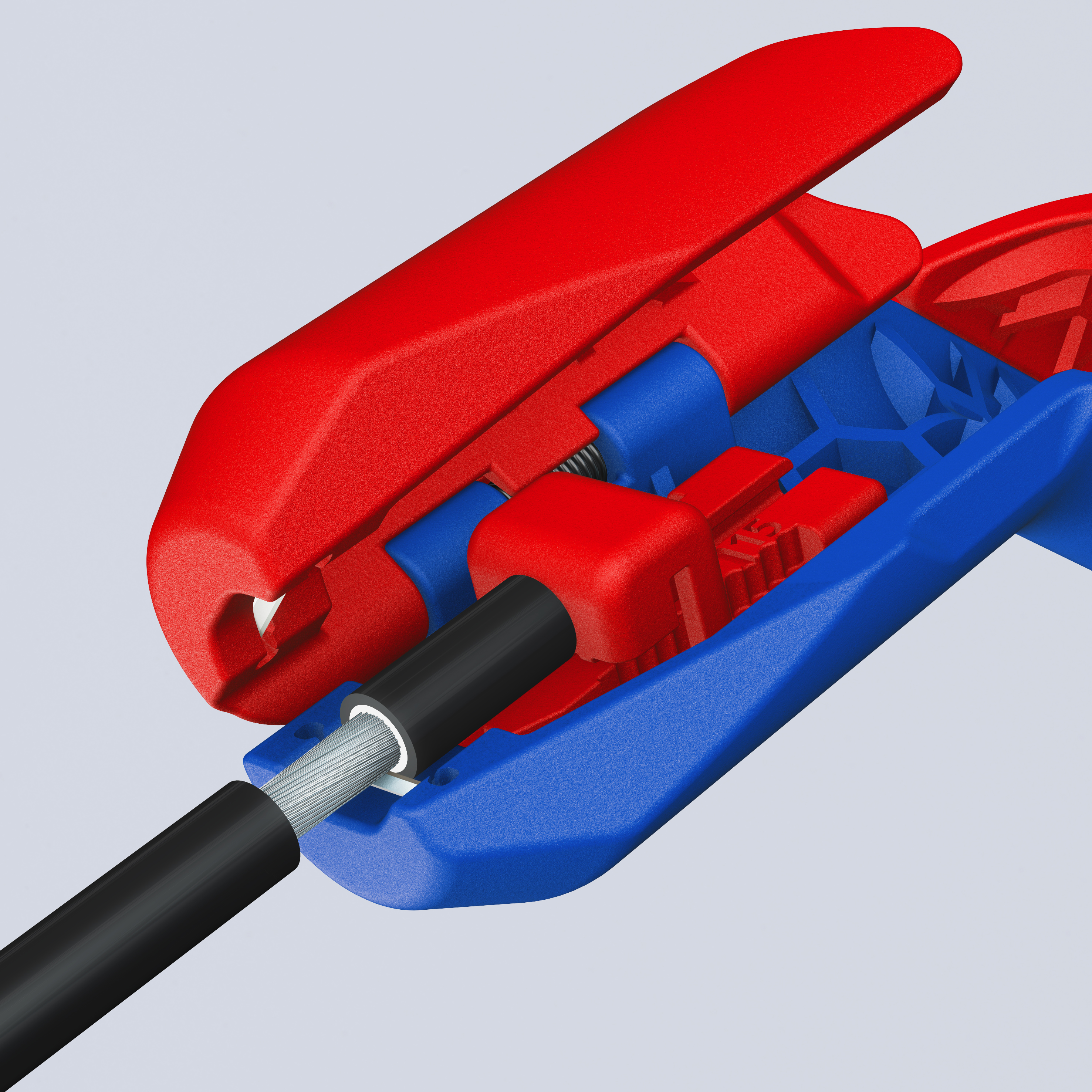

16 95 03 SB KNIPEX ErgoStrip® PV stripping tool for rapid stripping and removal of sheaths on all common round and flexible cables (e.g., NYM cable 3 x 1.5 mm² - 5 x 2.5 mm²), data cables (e.g., Twisted-Pair), and coaxial cables. Innovative ergonomic pistol-grip design for easy cutting, removal, and length trimming of sheaths. Tapered tool tips for better access to confined spaces. Conductor stripping for cross-sections of 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm². Easy adjustment of individual conductors for stripping using positioning stoppers. Features a release spring and lock. Easy attachment of coaxial and data cables thanks to opening aid. Multi-component design with soft rubberized zone for easy handling and secure grip. Also suitable for stripping solar cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable stripping tool (EC000163)
Strip range diameter8 - 13 mm
Strip range cross-section0.2 - 4 mm²
Longitudinal sectionyes
Round edgeyes
Product codes
SAPDKW194
PLCDKW194
GTIN/EAN4003773092605
Manufacturer part number16 95 03 SB
Vendor material number16 95 03 SB
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.024 l
Package weight0.011 kg
Base uniteach
Package units6
Package contents–
UNSPSC27111506
BrandKNIPEX
VendorKNIPEX WERK
