ULTRASONIC WATER METER COLD WA HYDROSONIC DN20/190

Product code
4418067

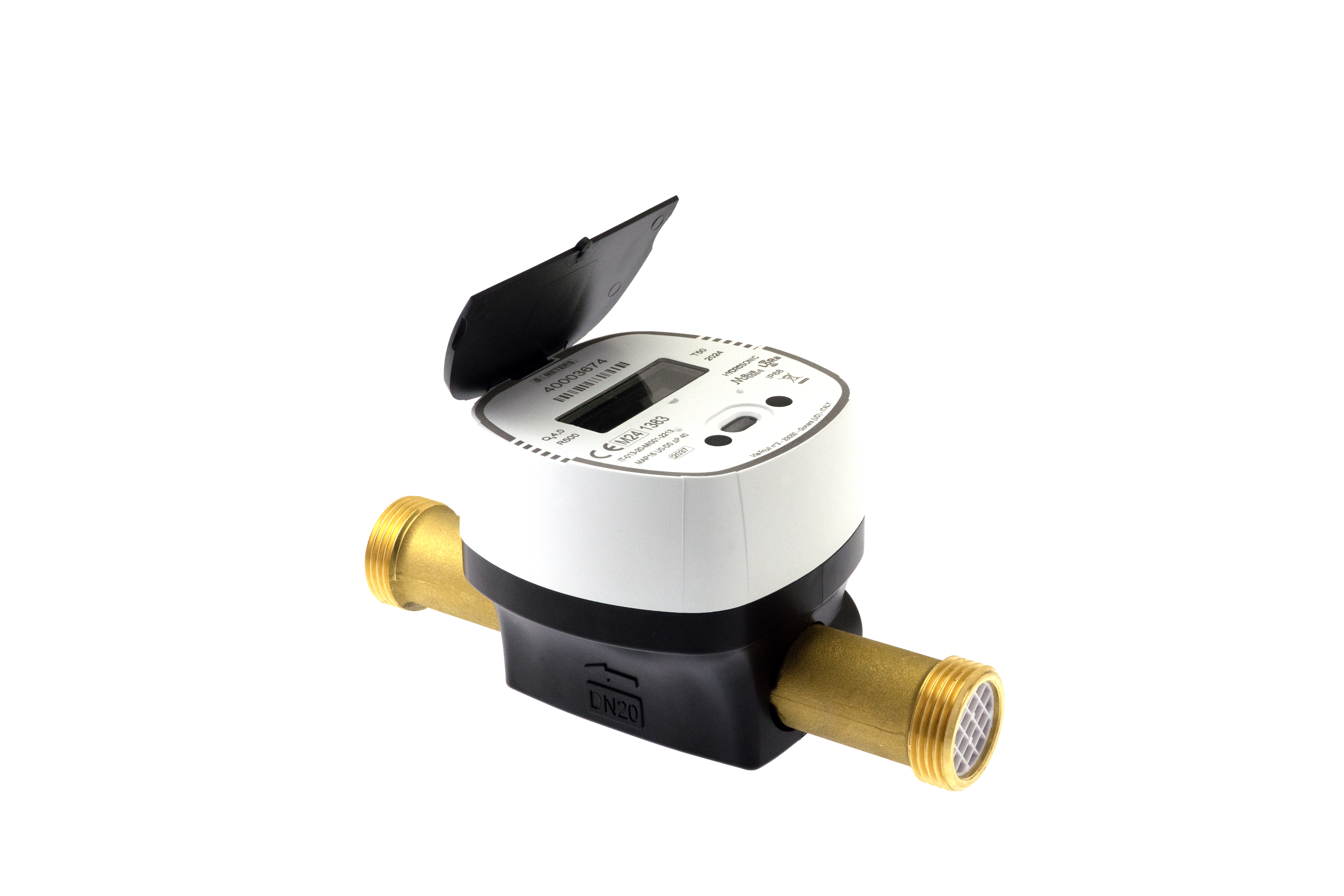

HYDROSONIC is a brass-bodied ultrasonic meter with an integrated LoRaWAN transmitter. The meter is freely installable and certified also for downward-facing installation. Battery life up to 16 years. The meter features a digital display, making it easy to monitor consumption readings. Meter alerts: reverse flow, overflow, pipe break, leak, battery, tampering, freezing. Temperature data is also available from the meter. The meter withstands temporary immersion (IP68). The meter can be easily used as a remote-read meter. An M-BUS module can be installed in the meter, enabling readings to be transferred to home automation. Ask your sales representative for more information. Remember to check the LoRaWAN network coverage for the location. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Liquid flow meter (EC010586)
Housing materialPolyvinyl chloride (PVC)
Article compression classPN 16
Continuous volume flow (Q3)4 m³/h

Product codes

SAPDBK401
HPAC4418067
PLC4418067
GTIN/EAN6429811028081
Vendor material number4418067

Basic information

Package measurements (L x W x H)210 x 110 x 125 mm
Package volume2.888 l
Package weight0.9 kg
Base uniteach
Package units1 / 20 / 200
Package contents
UNSPSC41112504
BrandKOKA
VendorKOKA OY

Documents (5)

Certificates
