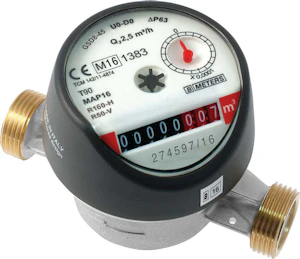

WARM WATER METER KOKA DN15 B-METERS GSD45
Product code
4438010
GSD-45 is a single-jet hot water meter designed for individual apartment water measurement. Thanks to the dry-counting mechanism, the dial remains clean.
Permitted installation positions: dial up, dial down, on its side, or into a vertical pipe.
Features
- case length 110 mm
- meter approved for billing use (complies with the MID metering equipment directive)
- 360-degree rotatable dial facilitates reading even in difficult locations.
- the 45-degree angled display dial allows the roll counter reading to be seen from below when the meter is installed on its side.
Product details
Technical specifications
Product class (ETIM)Liquid flow meter (EC010586)
Housing materialBrass
Product codes
SAPCEB220
HPAC4438010
PLC4438010
GTIN/EAN6415844380104
Manufacturer part numberGSD-45 LV
Vendor material number4438010
Basic information
Package measurements (L x W x H)155 x 80 x 105 mm
Package volume1.302 l
Package weight0.42 kg
Base uniteach
Package units1 / 40 / 160
Package contents–
UNSPSC41112504
BrandKOKA
VendorKOKA OY
