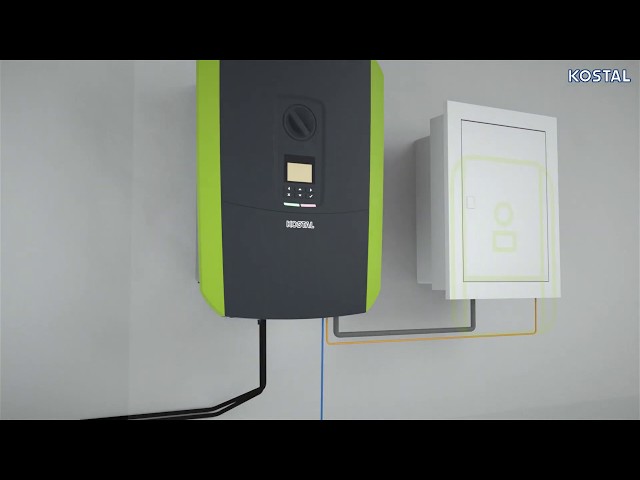

PV INVERTER KOSTAL PLENTICORE PLUS 5.5
Product code
CGZ909
No product description available.
Product details
Technical specifications
Product class (ETIM)DC/AC grid inverter (EC001747)
Max. input power DC8250 W
Max. input voltage DC1000 V
Max. input current DC39 A
Max. input current DC per MPP tracker13 A
Max. input current DC per string input13 A
Rated MPP-voltage120 - 720 V
Nominal output power AC5500 W
Number of independent MPPT inputs3
European efficiency96.2 %
Output phases3-phase
Integrated DC switchyes
With data loggingyes
DisplayStandard
Ethernetyes
Suitable for outdoor mountingyes
Product codes
SAPCGZ909
HPACCGZ909
STKCGZ909
PLCCGZ909
GTIN/EAN6438056255695
Manufacturer part number10335956
Vendor material number10335956
Basic information
Package measurements (L x W x H)490 x 300 x 640 mm
Package volume94.08 l
Package weight17.8 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39121006
BrandKOSTAL
VendorKOSTAL SOLAR ELECTRIC GMBH
