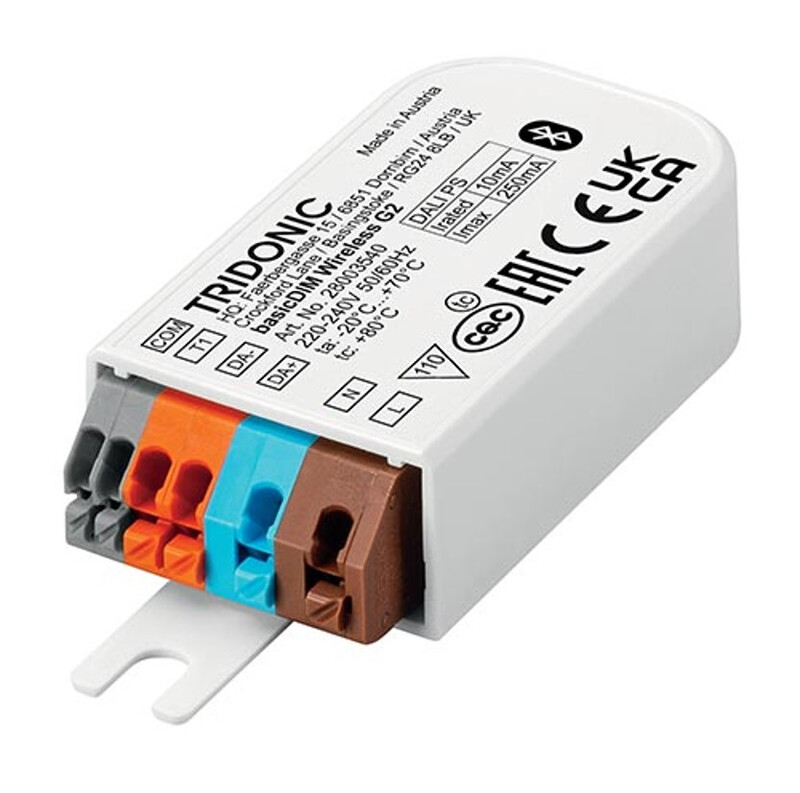

CONTROL COMPONENT BASICDIM WIRELESS MODULE G2

BasicDim Wireless G2 (equivalent to CBU-ASD) is a wireless control unit for DALI luminaires. The maximum output current is 10 mA, meaning that if a DALI device draws 2 mA, up to 5 luminaires can be added to the same control. A separate push button can also be connected to control this lighting group. No external DALI power supply is required.

Features

• Operating voltage 220–240 V
• Maximum current supply 10 mA
• Power consumption in standby mode < 0.4 W
• Can be installed with 1 push button
• Maximum cable length for push button 5 m, with 0.14–0.5 mm˛ cable
• Output to DALI bus
• DALI addresses 4, maximum 4 individual/group addresses depending on device profile
• Output current, DALI2 10 mA
• Operating temperature -20 to +70 °C
• Dimensions WxHxD 80.7 x 30 x 15.3 mm
• Protection class IP20

This product description is an automated translation of the original Finnish description.
