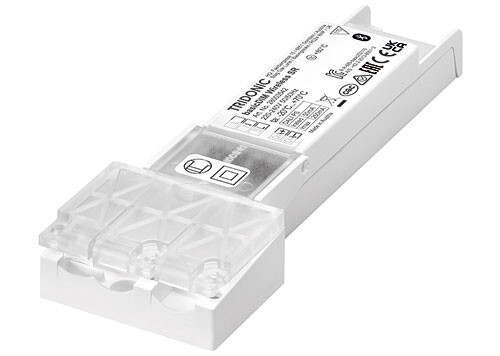

CONTROL COMPONENT BASICDIM WIRELESS SR

BasicDIM Wireless SR 2. Wireless control unit for DALI luminaires

Features

• includes pull-out switch
• nominal output current is 50mA, maximum current temporarily 250mA
• if a DALI device draws 2mA, up to 25 luminaires can be controlled under the same control
• no external DALI power supply required
• can also connect a wired push button
• supports DALI-2
• 5-year warranty
• operating voltage 220 – 240 V
• maximum current supply 50 mA
• power consumption in standby mode < 0.5 W
• one push button can be installed
• maximum cable length in broadcast mode 300m with 1.5 mm˛ cable
• output to DALI bus: DALI addresses 4, up to 4 individual/group addresses depending on device profile
• output current, DALI2 50 mA
• operating temperature -20 - +70 °C
• dimensions (WxHxD) 156 x 50 x 22 mm
• protection class IP20

This product description is an automated translation of the original Finnish description.
