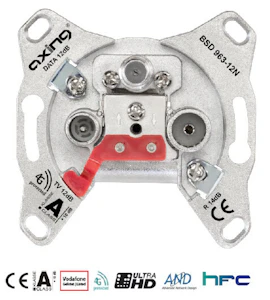

ANTENNA BOX LA-ANT MULTIMEDIA OUTLET 12.0 DB

High-class 3-port cascadable 12 dB multimedia box is designed for use in cable TV networks with interactive DOCSIS 3.0 system operating in the frequency range of 5-65/85-1006 MHz. Features include: - The antenna box's radiation tightness class is A (+10 dB) according to standard EN 50083-2. - Suitable for return path frequency of 5-65 MHz. - Cable connection secured by screw termination for both center conductor and outer shield. - Easy to install. - Cable stripping dimensions: center conductor 8 mm and outer shield 13 mm. - The box is surface treated. Technical specifications: 12 dB cascadable multimedia box TV/R/Data • Data: 5-65 MHz. Box attenuation 12 dB +/- 1 dB. F-female connector • TV: 109-1006 MHz. Box attenuation 12 dB +/- 1 dB. IEC-male connector • Radio: 87.5-125 MHz. Box attenuation 14 dB +/- 1.5 dB. IEC-female connector • Pass-through attenuation for trunk cable IN/OUT 5-1006 MHz: < 3.5 dB • Isolation attenuation TV/Data @ 5-65 MHz > 70 dB • Isolation attenuation TV/Data @ 109-1006 MHz > 30 dB • Suitable for cable with inner conductor diameter 0.63 … 1.13 mm and outer diameter 4.70 … 7.35 mm This product description is an automated translation of the original Finnish description.
