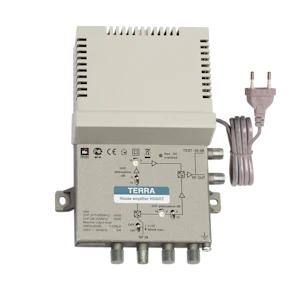

BROADBAND AMPLIFIER HS 005T, 30/34DB, 1-IN, LTE700
Product code
7540477
HS 005T Broadband amplifier for single-family homes, independently adjustable VHF 10-30dB (88-230MHz), UHF 14-34dB (470-694MHz). Blocking attenuation 703MHz -10dB from UHF amplification. Output level IMD3=60dB 112dBuV, 1×OUT, 1×test point -30dB, 1 input, +12VDC/60mA max supply This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CATV-amplifier (EC000423)
Connection typeF-Connector
Number of outputs1
Number of inputs1
ModelIn-house distribution amplifier
Power adaptorBuilt-in (integrated)
Remote feedableno
Equalizerno
Level adjusteryes
Return path channelNone
Return path channel boost0 dB
Product codes
SAPCBI221
STK7540477
PLC7540477
GTIN/EAN6410075404773
Manufacturer part numberHS 005T
Vendor material number7540477
Basic information
Package measurements (L x W x H)205 x 150 x 60 mm
Package volume1.845 l
Package weight0.67 kg
Base uniteach
Package units1 / 20 / 20
Package contents– PCE
UNSPSC43221702
BrandLAATUANTENNI
VendorLAATUANTENNI OY
