BROADBAND AMPLIFIER LA-ANT 5-65MHZ 30DB / 85-1006MHZ 38DB

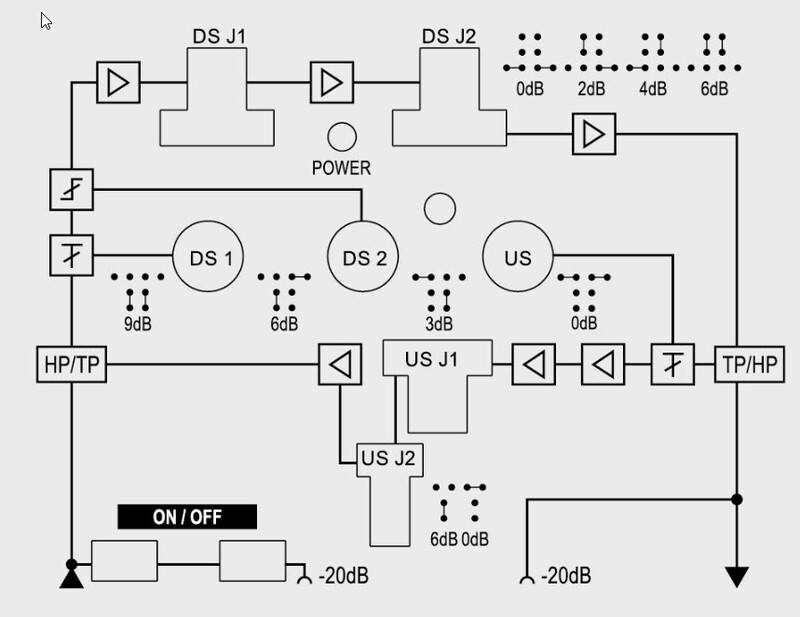

Axing BVS 20-69N DOCSIS 3.0 cable amplifier Forward path 85-1006 MHz, gain 38 dB, CTB/CSO: 107 dBµV, adjustable input attenuation and tilt, 0/2/4/6 dB interstage attenuation and tilt via jumpers, return path 5-65 MHz, active 30 dB, F connectors, local power supply 230 VAC, 1 output. Test points on input and output. Technical specifications: Forward path • Frequency range: 85…1006 MHz • Gain: 38 dB • Maximum output level CSO/CTB (CENELEC grid, 41 channels, 60 dB IMA): 107 dBµV • Maximum output level 112 channels QAM256 (flat, BER<1x10-9): 104 dBµV • Adjustable input attenuation: continuous 0…15 dB • Input tilt adjustment: continuous 0…15 dB • Interstage attenuation selectable via jumpers: 0 | 2 | 4 | 6 dB • Interstage tilt adjustment selectable via jumpers: 0 | 2 | 4 | 6 dB • Reflection attenuation: ≥ 18 dB (-1.5 dB/octave) • Noise figure typical: ≤ 5.5 dB Return path • Frequency range: 5…65 MHz • Gain: 30 dB • Noise figure: ≤ 7 dB • Attenuation adjustment: continuous 0…15 dB • Interstage tilt adjustment selectable via jumpers: 0 | 3 | 6 | 9 dB • Interstage attenuation selectable via jumpers: 0 | 6 dB RF connectors • Input: F-female • Output: F-female • Test points input/output: -20 ±2.5 dB / -20 ±1.0 dB: F-female General • Operating voltage: 100...240 VAC / 50...60 Hz • Operating status indicator: LED • Power consumption: 10 W • Potential equalization connection: 4 mm² • Operating temperature range (according to EN 60065): -20…+50 °C • Dimensions (L × W × H) approx.: 196 × 100 × 60 mm • Weight: 0.748 kg • Protection class: IP54 This product description is an automated translation of the original Finnish description.
