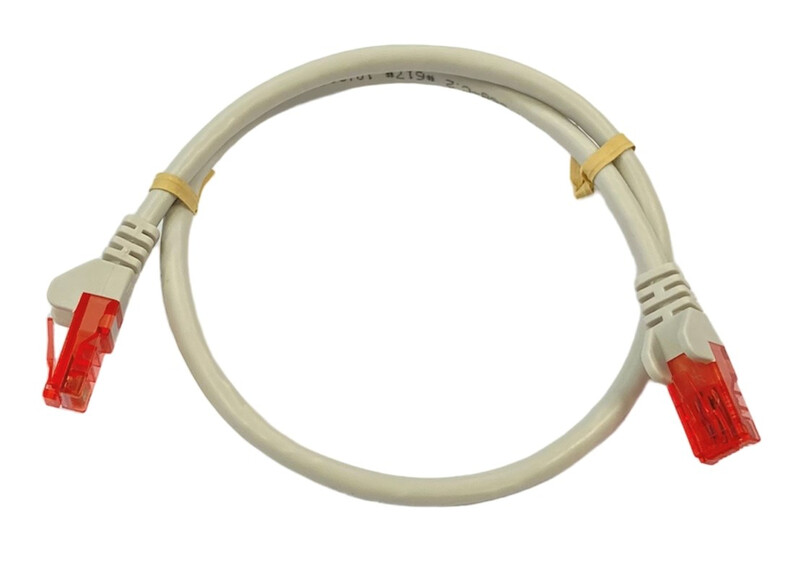

CONNECTING CABLE CAT6 CAT6 U/UTP 0.5M HA

RJ45-RJ45 unshielded CAT6 U/UTP cable with PVC outer jacket for connecting network components. High-quality copper-clad aluminum (CCA) wire and gold-plated contacts ensure excellent and efficient network connectivity. The RJ45 connector's strain relief prevents the strain relief from sticking or breaking, helping to provide a reliable Internet connection.

Bend protection and a sturdy PVC sheath effectively protect the Ethernet cable from damage. The CAT6 network cable is suitable for Gigabit Ethernet at speeds of 10/100/1000 Mbit/s. Pinout follows EIA/TIA 568B.

Connections:

• Connector 1: RJ45 male (8P8C), gold-plated
• Connector 2: RJ45 male (8P8C), gold-plated

Technical specifications

• Bend protection: Yes
• Locking protection: Yes
• Connection: EIA/TIA 568B
• Cable:
• Category: CAT6
• Shape: Round
• Shielding: U/UTP (unshielded) AWG: 24/7 (stranded)
• Conductor material: CCA (copper-clad aluminum)
• Jacket material: PVC
• Diameter: 5.8 mm
• Bend radius: >46.4 mm
• Length: 0.5 m
• Color: Gray
• Signal transmission:
• Bandwidth: max. 250 MHz
• Operating temperature: -20 °C...60 °C
