CONNECTOR CAT6 RJ45 KEYSTONE CAT6 UTP

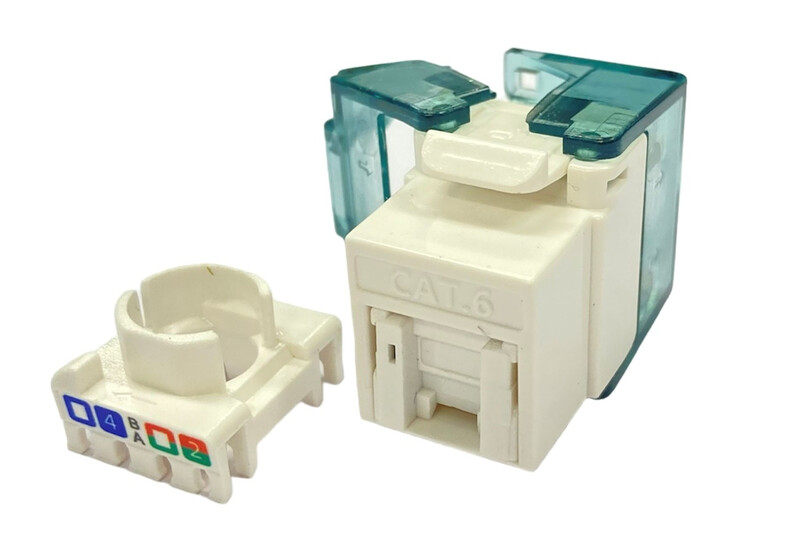

Unshielded plastic-bodied, tool-free RJ45 Keystone Cat6 UTP connector for Cat6 cables. The connector is quick to install thanks to its tool-free design. The connector is also equipped with a dust cover for the RJ45 connector, and the rear part of the connector is made of transparent plastic. When the transparent cover is closed, it prevents the cut copper wires from contacting other connectors or the panel's metal parts. Application: Suitable for building and renovation projects. The connector complies with Traficom's M65D internal network requirements. Cables exit the connector directly backward. Packaging size: 24 pieces/pack (BULK), with connector bodies and connector covers in separate 24-piece bulk bags. Technical specifications:

• Current rating: 1.5 amperes
• Insulation resistance: =>500 Mohm
• Contact resistance: <=10 mohm
• DC resistance: <=0.1 ohm

• DC/AC voltage rating: DC1000V/AC750V for 1 min
• Connector life: 750 mating cycles
• Operating temperature: -10°C to 60°C
• Operating humidity: 10% - 90% RH
• Storage temperature: -40°C to 68°C
• Plastic components: High-quality plastic

Complies with Standards:

• ANSI/TIA-568.2-D
• ISO/IEC 11801-1
• IEC 60603-7-4
• ROHS Directive 2002/95/EC
