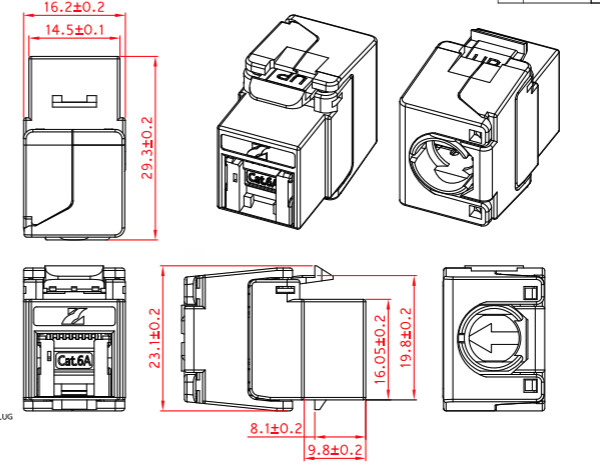

CONNECTOR CAT6A RJ45 KEYSTONE CAT6A UTP
Product code
7273149
Unshielded plastic-bodied toolless RJ45 Keystone Cat6A UTP connector for Cat6A cables.
The connector is quick to connect thanks to its toolless design.
The connector is also equipped with a dust cover for the RJ45 connector.
Application areas: Suitable for building and renovation projects.
The connector complies with Traficom's M65D internal network requirements.
The cable exits the connector directly backward.
Pack size: 24 pieces bulk packed.
Technical specifications:
Power endurance: 1.5 amperes
Insulation resistance: =>500 MOhm
Contact resistance: <=10 mOhm
DC resistance: <=0.1 Ohm
DC/AC voltage endurance: DC1000 V / AC750 V for 1 min
Connector lifespan: 750 connection cycles
Operating temperature: -10 °C to 60 °C
Operating humidity: 10% - 90% RH
Storage temperature: -40 °C to 68 °C
Plastic components: High-quality plastic
Complies with standards:
ANSI/TIA-568.2-D
ISO/IEC 11801-1
IEC 60603-7-4
RoHS Directive 2002/95/EC This product description is an automated translation of the original Finnish description.
The connector is quick to connect thanks to its toolless design.
The connector is also equipped with a dust cover for the RJ45 connector.
Application areas: Suitable for building and renovation projects.
The connector complies with Traficom's M65D internal network requirements.
The cable exits the connector directly backward.
Pack size: 24 pieces bulk packed.
Technical specifications:
Power endurance: 1.5 amperes
Insulation resistance: =>500 MOhm
Contact resistance: <=10 mOhm
DC resistance: <=0.1 Ohm
DC/AC voltage endurance: DC1000 V / AC750 V for 1 min
Connector lifespan: 750 connection cycles
Operating temperature: -10 °C to 60 °C
Operating humidity: 10% - 90% RH
Storage temperature: -40 °C to 68 °C
Plastic components: High-quality plastic
Complies with standards:
ANSI/TIA-568.2-D
ISO/IEC 11801-1
IEC 60603-7-4
RoHS Directive 2002/95/EC This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Modular connector (EC001121)
ModelBus (jack)
Type of connectorRJ45 8(4)
Screenedno
Category6A (IEC)
Connection typeInsulation displacement connector
Special tool necessaryno
Suitable for round cableyes
Suitable for flat cableno
Suitable for litz wire conductoryes
ColourSilver
Transparentno
Product codes
SAPDFP059
STK7273149
PLC7273149
GTIN/EAN6430078841894
Manufacturer part numberLA-C6A-TF-KS-24
Vendor material number7273149
Basic information
Package measurements (L x W x H)100 x 30 x 14 mm
Package volume0.042 l
Package weight0.015 kg
Base uniteach
Package units24
Package contents–
UNSPSC43223207
BrandLAATUANTENNI
VendorLAATUANTENNI OY
