DAMPER FIBERATTENUATOR SM 5DB SC/APC
Product code
7273205

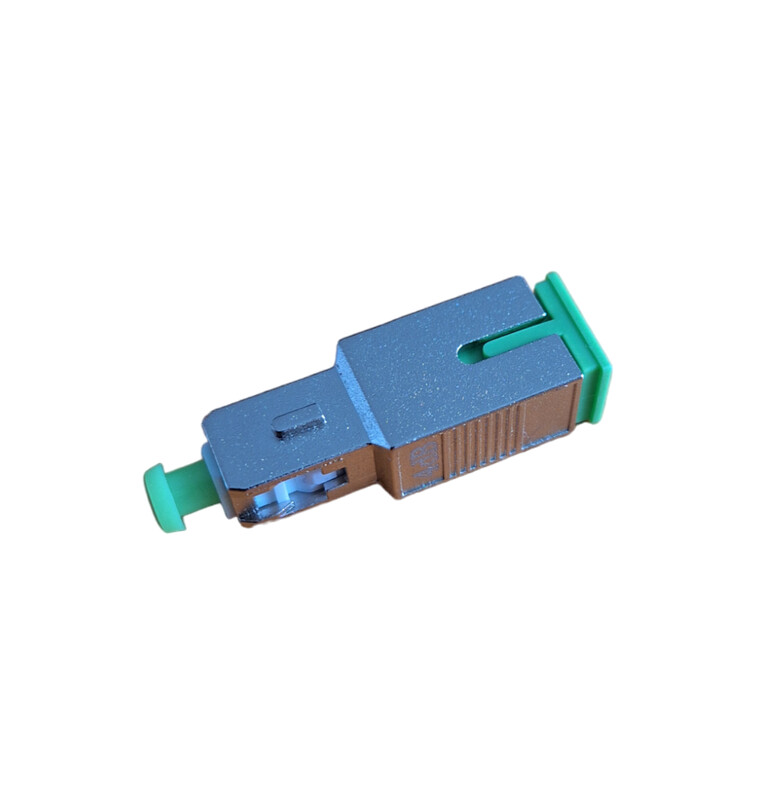

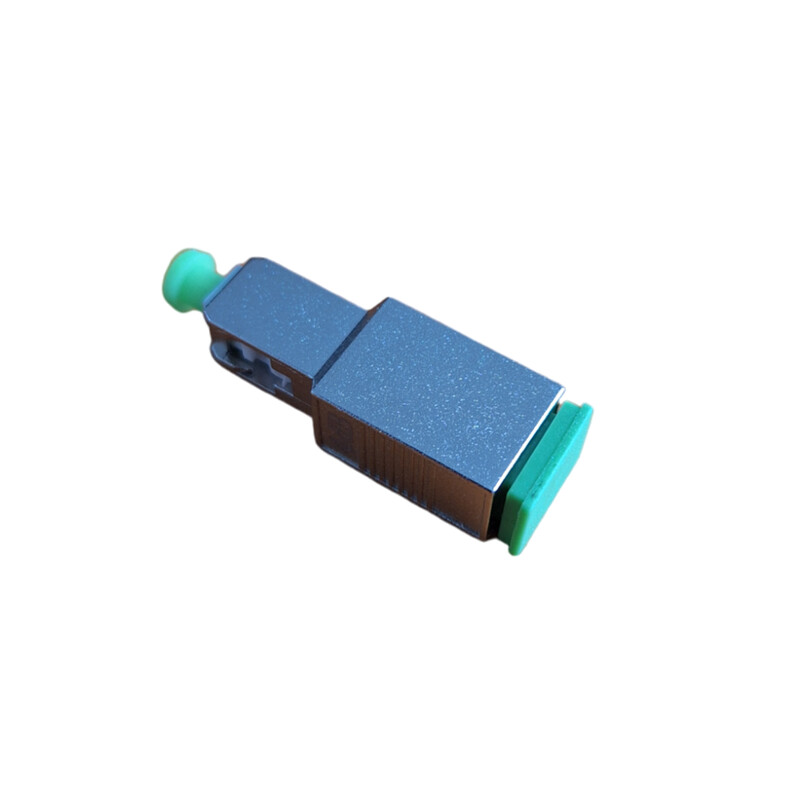

Fixed optical single-mode fiber attenuator of the plug-in type used to reduce the power level of the optical signal.
Applications include:
Optical fiber communication networks
Lightweight data networks
CATV networks
Technical specifications:
Attenuation: 5dB +/-0.5dB
Connectors: SC male - SC female
Polish: APC
Wavelength: 1310/1550nm
Return loss: >60dB This product description is an automated translation of the original Finnish description.
Applications include:
Optical fiber communication networks
Lightweight data networks
CATV networks
Technical specifications:
Attenuation: 5dB +/-0.5dB
Connectors: SC male - SC female
Polish: APC
Wavelength: 1310/1550nm
Return loss: >60dB This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Line equalizer (receiver technology) (EC000763)
Max. equalization5 dB
ModelFix
Product codes
SAPDHN545
STK7273205
PLC7273205
GTIN/EAN6430078842297
Manufacturer part numberLAF OV SC/APC 5DB SM
Vendor material number7273205
Basic information
Package measurements (L x W x H)90 x 60 x 10 mm
Package volume0.054 l
Package weight0.01 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandLAATUANTENNI
VendorLAATUANTENNI OY
