DATA CABLE-HF CAT6 CAT6 U/UTP 4p Dca K500 BLUE

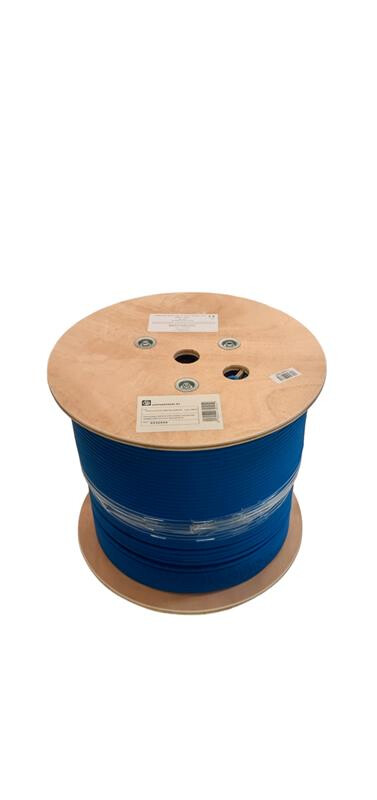

The high-quality materials used in Cat6 U/UTP cables ensure excellent tensile, durability, and electrical properties. The cables have been tested by a third-party testing organization that also verified the 250 MHz bandwidth. The cables comply with RoHS and REACH requirements. The cable is sold on a 500 m reel. Cable technical specifications:

• Cable conductor: Pure copper
• Conductor diameter: 0.55 ± 0.005 mm
• Insulation material: High-density polyethylene
• Jacket diameter: 5.9 ± 0.4 mm (unshielded standard)
• Jacket material: LSZH
• Jacket color: Blue, RAL 5015
• Operating temperature: -30 °C to +50 °C

Mechanical parameters Before aging:

• Tensile strength >= 10.0 MPa
• Elongation >= 125%

Aging time: 100 °C × 24 hours × 7 days. After aging:

• Tensile strength >= 8 MPa
• Elongation >= 100%

Cold bending (-20 ± 2 °C × 4 hours): 8 times the cable outer diameter without cracking. Electrical parameters (20 °C)

• Impedance: 1-250 MHz 100±15 ohm
• Velocity factor: NVP 69 %
• Propagation delay skew: <=45 ns / 100 m
• DC resistance: max 9.38 ohm / 100 m
• DC resistance imbalance: max 5 %

This product description is an automated translation of the original Finnish description.
