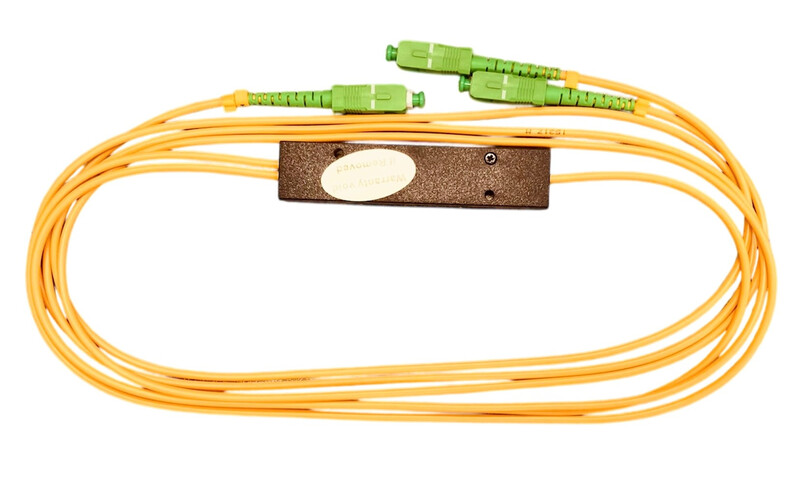

DISTRIBUTION BLOCK 2-WAY OPT SPLITTER 60/40 SCAPC

Optical splitter with two 60/40% split ratios in a durable heavy-duty housing with 2 mm thick 1 meter long patch cords featuring SC/APC connectors. Wavelengths 1310/1550 nm, attenuation 4.4/2.4 dB. ABS plastic housing 90 x 20 x 10 mm. Optical splitters are primarily used in PON/WDM networks to maximize fiber capacity and enable comprehensive network coverage for each subscriber. Features: Excellent mechanical housing properties, stable performance and high reliability, also available in two-way splitters with 5% incremental split ratios. Applications: FTTH residential construction, PON and WDM networks, CATV networks. Technical specifications: Optical splitter with two 60/40% split ratios, patch cord Ø 2 mm / 1 m, connector SC/APC, wavelength 1310/1550 nm, fiber type G657A, attenuation 4.4/2.4 dB, attenuation without connectors, connector attenuation addition 0.3 dB, return loss min 50 dB, polarization dependent loss max 0.15 dB, directivity min 50 dB, operating temperature -20°C to +70°C, dimensions (w*d*h): 90mm*20mm*10mm This product description is an automated translation of the original Finnish description.
