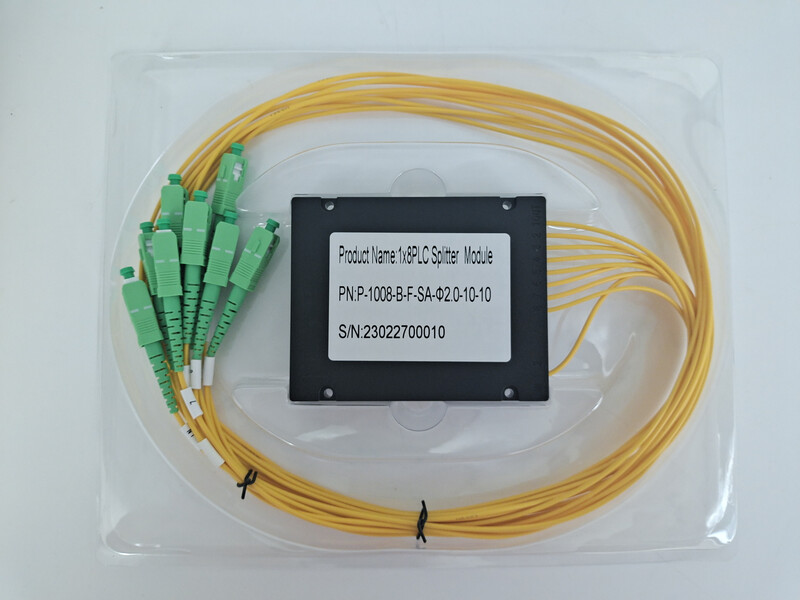

DISTRIBUTION BLOCK 8-WAY OPTICAL SPLITTER SCAPC

Optical splitter with eight outputs in a durable heavy-duty housing with 2 mm thick 1 meter long patch cords featuring SC/APC connectors. Wavelengths 1310/1550 nm, attenuation 10.2 dB. ABS plastic housing 100 x 80 x 10 mm. Optical splitters are primarily used in PON/WDM networks to maximize fiber capacity in networks and enable comprehensive network coverage for each subscriber. Features: Excellent mechanical properties of the housing Stable performance and high reliability Applications: FTTH residential construction PON and WDM networks CATV networks Technical specifications: Split ratio 1:8 Patch cord Ø 2 mm / 1 m Connector SC/APC Wavelength 1310/1550 nm Fiber type G657A Attenuation 10.2 dB - attenuation without connectors, connector attenuation addition 0.3 dB Attenuation uniformity max 0.8 dB Return loss min 55 dB Polarization dependent loss max 0.2 dB Directivity 55 dB Operating temperature -40°C to +85°C Dimensions (w*l*h): 100 mm * 80 mm * 10 mm This product description is an automated translation of the original Finnish description.
