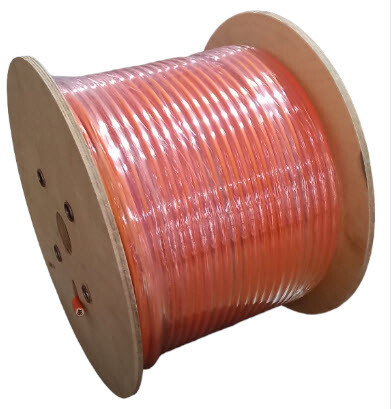

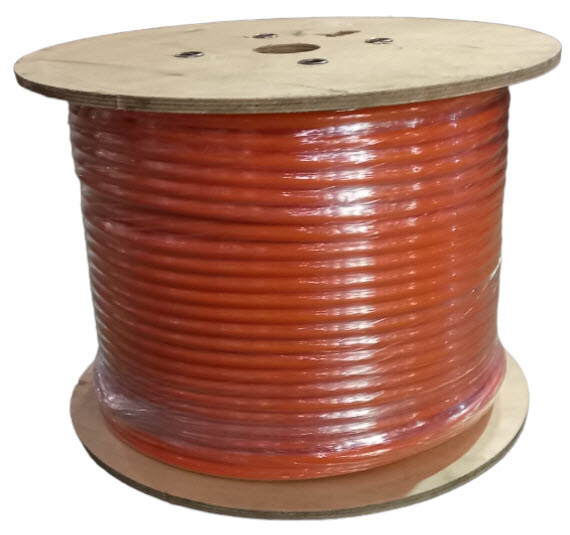

INSTALLATION CABLE-FRHF NHXH 5G2,5 FE180/E90 D500

FRHF installation cable (N)HXH 5x2.5 mm² FE180/PH120/E90 Orange, K500, outer Ø 12.4 mm, HFFR. The flame-retardant and halogen-free NHXH installation cable is intended for fixed electrical installations in dry or humid areas where functionality must be maintained during a fire for safety reasons. The Ören NHXH cables have been tested for cable system fire resistance class E90 according to standard DIN 4102-12. The cable is VDE certified and suitable for use at a voltage level of 600/1000 V. The cable's outer sheath is protected against UV radiation, but if the cable is exposed to sunlight, we recommend protecting it, for example, with a protective conduit or protective channel. The cable may be installed directly into the ground only when using a protective conduit. E90 cable system testing and VDE E90 certification have been performed with OBO BETTERMANN and BAKS cable trays and mounting accessories. - 180 min fire resistance (FE 180) IEC 60331-21 / EN 50200 - 120 min fire resistance with shock (PH 120) EN 50200 - Self-extinguishing in bundle IEC 60332-3-24 Cat C - Low smoke emission IEC 61034-2 - Cable system fire resistance (E90) DIN 4102-12 - VDE Certified Technical data: Operating voltage: 600/1000 VAC Test voltage: 4000 V Conductor resistance: 2.5 mm²: <7.41 ohm/km Operating temperature: -20 °C … +70 °C Minimum bending radius: 10 x D Packaging: 100 m reel or coil 250/500 m Construction: Conductors: Electrolytic solid copper wire, Class 1 IEC 60228 / DIN EN 60228 / EN 60228 Conductor insulation: Cross-linked halogen-free polymer compound (Silicon) EN-50363-5 EI8 Conductor colors: 5-core: yellow/green, blue, brown, black, grey Insulation thickness over conductor: 2.5 mm²: 0.60 mm Inner insulation material: HFFR Outer sheath: HFFR, RAL 2003, orange (EN 50290-2-27) Outer sheath diameter: 12.4 mm - Flame Retardant Test: IEC 60332-1-2 - Flame Propagation Test: IEC 60332-3-24 Cat C - Smoke Density: IEC 61034-2 - Corrosive Gas Test: IEC 60754-2 - Halogen Free Test: IEC 60754-1 - Circuit Integrity Test: IEC 60331-21 (FE/180) - Circuit Integrity With Shock Test: EN 50200 (PH/120) This product description is an automated translation of the original Finnish description.
