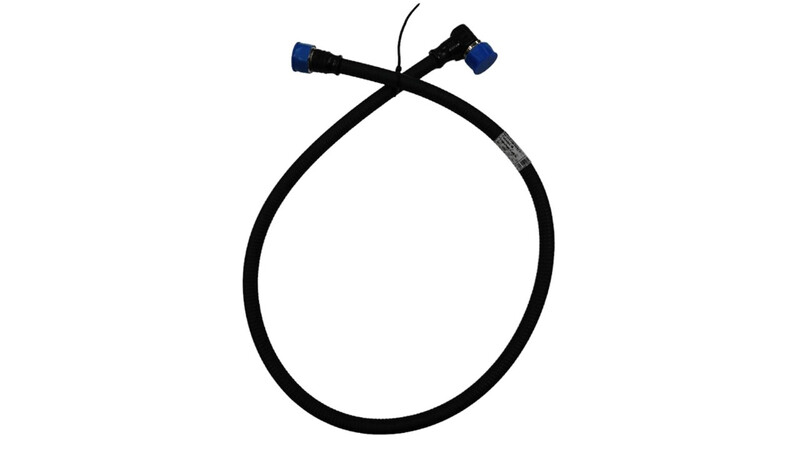

JUMPER 1/2 JUMPPER 1M, 4.3-10MA, HF

LAD SFJ series 1/2" superflexible 50 ohm halogen-free RF jumper cables are suitable for demanding multi-operator and base station applications. The cables are HF outer jacketed and have undergone third-party UV resistance testing and are equipped with a UV resistance certificate, making them suitable for mast construction (outdoor use) as well as building internal networks. Thanks to the superflexible corrugation of the cables, they offer optimal flexibility, facilitating installation even in confined spaces. LAD SFJ series superflexible jumper cables are Low PIM certified (2x43dBm ? -160 dBc), for the frequency range 0-6000 MHz, and have CPR class B2ca-s1a-d1-a1. The cables feature 4.3-10 male connectors of the rotatable type. The cables are available in various lengths with both straight and angled connectors. LAD SFJ 4310MA-4310M 1M HF: 1/2" superflexible 50 ohm HF jumper cable, 1m length, with a 4.3-10 angled male connector on one end and a 4.3-10 straight male connector on the other end, both of the rotatable type. Technical specifications: Frequency range: 0 - 6.000 MHz, Impedance: 50 ohm, Low PIM 2x43dBm ? -160 dBc, VSWR @ 0.8-3.0 GHz: 1.10, Length: 1m, Connectors: 4.3-10 angled male connector / 4.3-10 straight male connector, rotatable type, IP 68 (24h, 1m, 20°C), Operating temperature range: -45 … +85°C, Cable tensile strength: 500 N, Nut torque: 5 Nm, Insulation resistance: 5000 Mohm, Inner dielectric voltage withstand: 2000 V rms (DC), Operating voltage: 1500 V, RoHS compliant, Outer jacket UV tested. This product description is an automated translation of the original Finnish description.
