JUMPER 1/2 JUMPPER 5M, 4.3-10M, HF

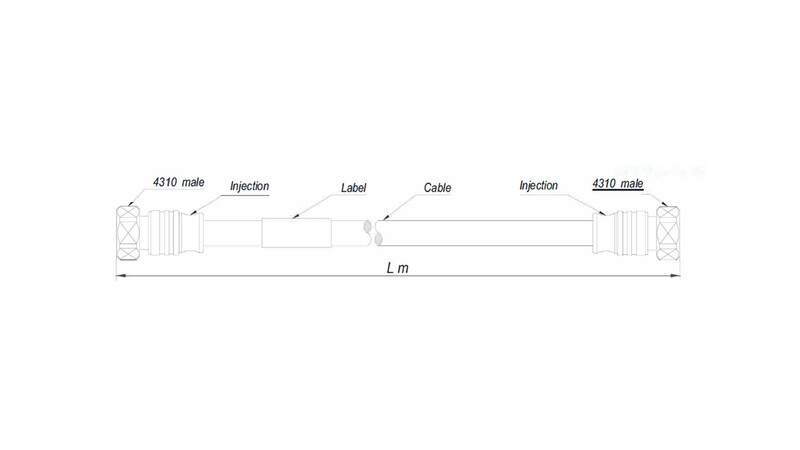

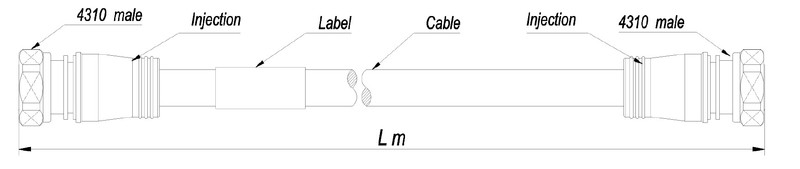

LAD SFJ series 1/2" superflexible 50 ohm halogen-free RF jumper cables are suitable for demanding multi-operator and base station applications. The cables are HF outer sheathed and have undergone third-party UV resistance testing and are equipped with a UV resistance certificate, making them suitable for mast construction (outdoor use) and building internal networks. Thanks to the superflexible corrugation of the cables, they have optimal flexibility, facilitating installation even in confined spaces. The LAD SFJ series superflexible jumper cables are Low PIM certified (2x43dBm ? -160 dBc), for the frequency range 0-6000 MHz, and have CPR class B2ca-s1a-d1-a1. The cables feature 4.3-10 male connectors of the rotating type. The cables are available in various lengths with both straight and angled connectors. LAD SFJ 4310M-4310M 5M HF: ˝" superflexible 50 ohm HF jumper cable, 5m length, with 4.3-10 straight male connectors on both ends, rotating type. Technical specifications: Frequency range: 0 - 6.000 MHz, Impedance: 50 ohm, Low PIM 2x43dBm ? -160 dBc, VSWR @ 0.8-3.0 GHz: 1.10, Length: 5m, Connectors: 4.3-10 straight male connector / 4.3-10 straight male connector, rotating type, IP 68 (24h, 1m, 20 C), Operating temperature range: -45 … +85 C, Cable tensile strength: 500 N, Nut torque: 5 Nm, Insulation resistance: 5000 Mohm, Inner dielectric voltage withstand: 2000 V rms (DC), Operating voltage: 1500 V, RoHS approved, Outer sheath UV tested. This product description is an automated translation of the original Finnish description.
