MAST FILTER LA-ANT LTE700, OUTDOOR

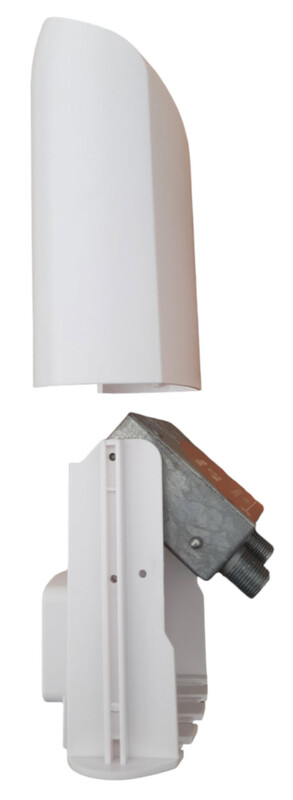

The Fagor LBF-M694 is an LTE700 bandstop filter housed in a mast enclosure. The passband width is 5-694 MHz and the stopband is 694-2000 MHz. Passband insertion loss < 1 dB, stopband attenuation at 703 MHz > 10 dB and at 734 MHz > 60 dB, meaning the filter restricts access of mobile broadband signals to the network from 4G/5G and GSM frequency bands. The LBF-M694 LTE700 filter features a DC pass-through capability of up to 24 VDC / 300 mA. The filter is compact, measuring only 89 x 97 x 45 mm. The filter's protective housing can be removed during installation to facilitate cable connections to the filter. The LTE700 bandstop filter is recommended for use when the reception site is located near a mobile base station, when using a network antenna amplifier, or when the reception site is far from a TV transmitter and reception conditions are challenging with respect to TV signal strength, as mobile broadband interference can more easily cause problems in the network. The filter housing is made of rigid aluminum, which prevents external interference such as LTE signals from directly entering the filter housing, thereby preventing mobile broadband signals from interfering with TV picture quality. The LBF-M694 LTE700 filter is equipped with F-female connectors. This product description is an automated translation of the original Finnish description.
